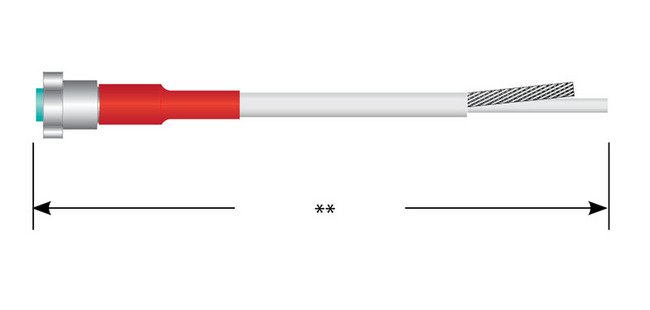

The 610 Series Shielded Single-Ended Cable Assembly, part of the high voltage connectors and cable assemblies line, features a larger coupling nut for enhanced durability and is ideal for airborne applications and frequent mating operations. With the ability to prevent cross mating using unique threads, these cable assemblies can operate at altitudes up to 70,000 ft. The internal seals ensure reliability in extreme conditions from -55 to 125 °C, meeting the stringent requirements of institutional and government buyers.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 600S receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
610
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
Specifications Wire Type
Shielded
