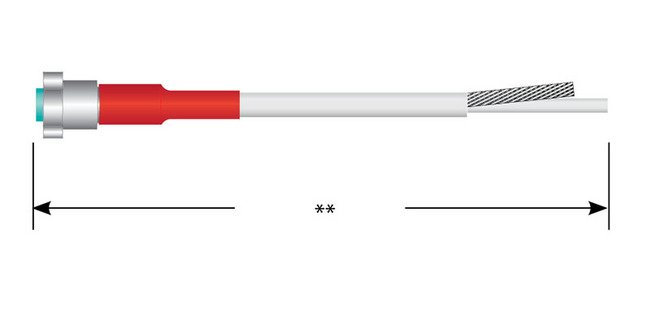

610 SL Shielded Single-Ended Cable Assembly
610 SL Shielded Single-Ended Cable Assembly
SKU:HIG-8fa51e
High voltage 610 SL Shielded Cable Assembly for secure and reliable connections in challenging environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
610 SL Shielded Single-Ended Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
610 SL Shielded Single-Ended Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 610 SL Shielded Single-Ended Cable Assembly is designed for high voltage applications, featuring a current rating of 1 Amp and a voltage rating of 10 kVDC, making it ideal for airborne and high-mating operation scenarios. With a larger coupling nut for easy handling and polarization capabilities, this cable assembly ensures secure connections and prevents cross mating. It is constructed with shielded wire and meets operating temperatures from -55 to 125°C, providing reliability in diverse environments. The threaded coupling style and BeCu contact material with gold finish further enhance its durability and conductivity, making it a reliable solution for demanding applications.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated | Passivated
Body Properties Coupling Nut Material
Brass | Stainless Steel
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Style
Hex Coupling
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
1 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lock Wire Holes In Coupling Nut
No
Specifications Mating Compatibility
Mates all Series 610 SL receptacles
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
610 SL
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
15 kVDC at Sea Level | 7.5 kVDC at 70,000 ft.
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
