62 Ohm Primary DC Resistance J Series Audio Transformer
62 Ohm Primary DC Resistance J Series Audio Transformer
SKU:AUD-51ee35
Enhance audio performance with the versatile 62 Ohm J Series Audio Transformer featuring low resistance and high fidelity. Ideal for broadcast standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
62 Ohm Primary DC Resistance J Series Audio Transformer
$49.99
Quantity: 1
Claim Your Seller Account
62 Ohm Primary DC Resistance J Series Audio Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 62 Ohm Primary DC Resistance J Series Audio Transformer from the Triad J Series excels in performance, meeting broadcast standards and offering exceptional value. With multiple primary and secondary impedance options, this transformer ensures versatile compatibility. Featuring a DC resistance of 62 Ohm on the primary side and 70 Ohm on the secondary side, it delivers reliable and efficient audio signal transmission. The transformer's low level high fidelity, alloy shielding for hum reduction, and wide frequency range make it ideal for various applications, including line to line or transistor setups. With electrostatic and magnetic shielding, flexible leads for easy mounting, and lightweight design, this transformer is a robust and efficient choice for audio amplification needs.
Product Specifications
Applications Applications
Line to Line or Transistor
Direct Current Dc Resistance Dc Resistance Primary
62 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
70 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
1 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:1
Electrical Specifications At 25 Degree Celsius C Temperature Pri
50 Ohm | 110 Ohm | 200 Ohm | 300 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
150 Ohm | 600 Ohm
Features Features
Low level high fidelity.Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 60 to 80 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded .Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield
Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads

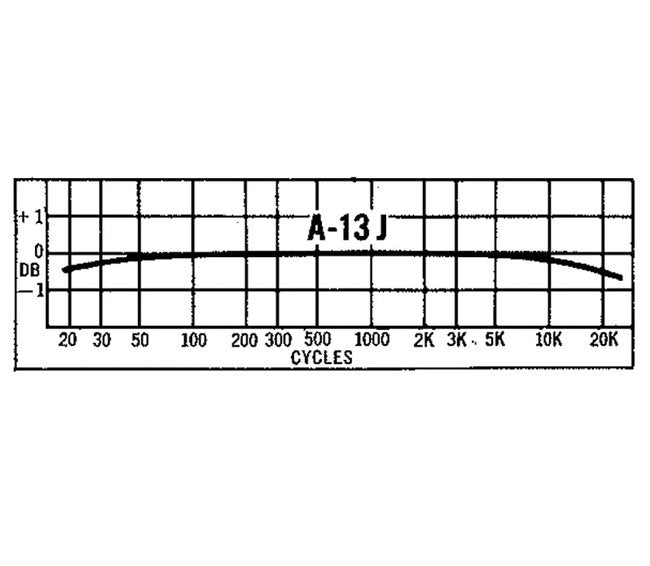

Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
60 to 80 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
Specifications Transformer Contact Type
Center Tap | Split Winding
