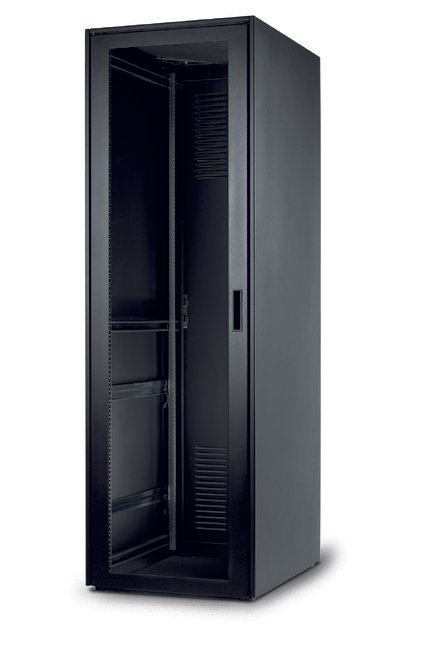

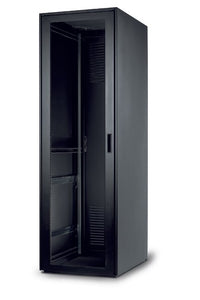

Medium Duty Commercial Cabinet with optional plexiglas front door shown. This vesitile series is a modular cabinet designed and built to pass some of the most stringent commercial applications.
Product Specifications
Notes 0
Cabinet frame is made from 12 gauge C.R.S.Removable top cover is made from 12 gauge C.R.S.Removable side panel (lift-off, 2 each) is made from 18 gauge C.R.S.Removable rear door (16 gauge C.R.S.)Mounting angles (2 pair) are made from 12 gauge C.R.S. with #10;-32 tapped holes per EIA RS-310 specs. Finish: zinc & bright.Decorative front horizontal trim (2 each) is aluminum extrusion (painted black).Leveller assembly (4 each).

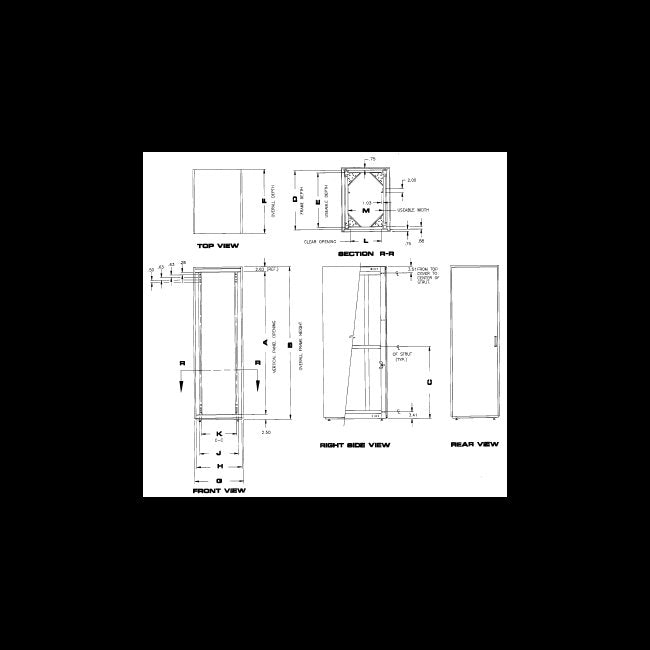

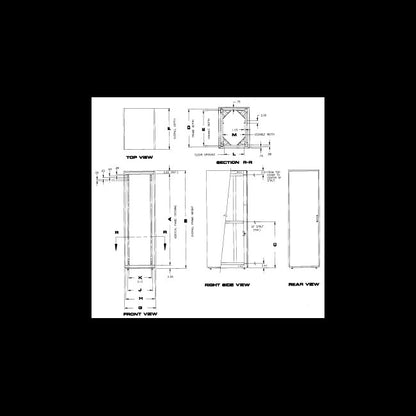

Specifications Clear Opening L
22.94 in
Specifications Color Charts
Fed Standard 595 Color Chart | RAL Color Chart
Specifications Frame Depth D
24.00 in
Specifications Frame Width H
27.63 in
Specifications Gdi Reference
Contact factory for information
Specifications Hole C C K
23.31 in
Specifications Number Of Bays
1
Specifications Options
Bottom cover | Bus bar | Caster base-top view | Front door options | Heavy-duty caster base | Heavy-duty casters | Key lock | Louvered rear door bottom | Louvered rear door top | Louvered rear door top and bottom | Louvered side panel bottom | Louvered side panel top | Louvered side panel top and bottom | Louvered top pan | Louvers | Medium duty casters | Medium duty casters base | Mounting "Z" rail | Mounting channel | Offset mounting channel | Power strip | Rear horizontal space divider | Standard duty caster base | Standard duty casters | Standard duty lifting eyes | Standard mounting angle | Stationary base | Writing surface assembly
Specifications Overall Depth F
25.50 in
Specifications Overall Height B
36.69 in
Specifications Overall Width G
29.13 in
Specifications Panel Height A
31.56 in (18U)
Specifications Panel Width J
24.13 in
Specifications Series
VR6200
Specifications Spec Sheets
6200SeriesCabinets.pdf
Specifications Useable Depth E
22.25 in
Specifications Useable Width M
25.00 in
