627M Series Vertical Machined D-Sub Connector with 9 Machined Pin Type Contacts

Name: 627M Series Vertical Machined D-Sub Connector with 9 Machined Pin Type Contacts
Brand: EDAC, Inc.
SKU: DSU-cc52a7
Price: 49.99 USD
Availability: OutOfStock

SKU:DSU-cc52a7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

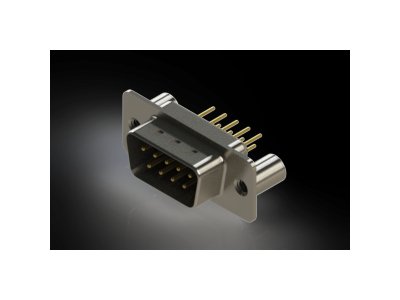

627M Series vertical D-Sub plug connector with 9 machined pin type contacts that have gold flash plating and 0.224" (5.70mm) P.C.B tails. The insulator is black. The shell is nickel plated. It is mounted via 4-40 UNC threaded board spacer.

Product Specifications

Note

Brochures and handouts are also available in Spanish, Portuguese, French, and Chinese, and to visit WWW.EDAC.NET! to download.

Specifications Contact Material

Precision Machined Copper Alloy

Specifications Contact Plating

Gold Flash Plating

Specifications Contact Plating Note

Gold Plating Over Nickel All Over

Specifications Contact Tail Size

0.224 in | 5.70 mm

Specifications Contact Tail Type

P.C. Tail

Specifications Dielectric Withstanding Alternating Current Ac Ro

1000 V

Specifications Electrical Connector Gender

Plug (Pin)

Specifications Electrical Connector Type

D-Sub

Specifications Insulator Color

Black

Specifications Insulator Material

Polyamide 6T (PA6T), Underwriters Laboratories (UL) 94V-0

Specifications Maximum Contact Resistance

10 mO

Specifications Minimum Insulation Resistance

5000 MO

Specifications Mounting And Grounding Option

#4-40 Universal Naming Convention (UNC) Threaded Boardspacer (P.C. Tail Only)

Specifications Number Of Positions

Specifications Operating Temperature

-55 to +125 ºC

Specifications Series

627M

Specifications Shell Material

Nickel Plated Steel (Optional Tin plating)

Specifications Shell Plating

Nickel Plated Shell

627M Series Vertical Machined D-Sub Connector with 9 Machined Pin Type Contacts
