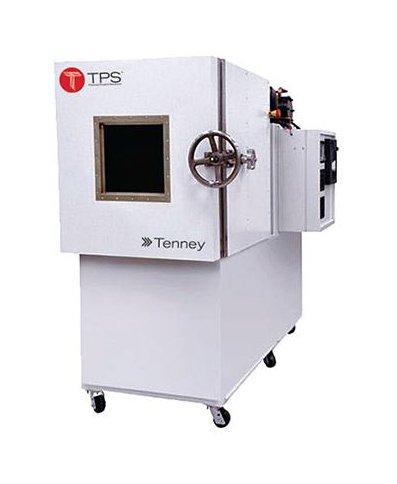

64S, Tenney Industrial Thermal Vacuum Oven

Name: 64S, Tenney Industrial Thermal Vacuum Oven
Brand: Thermal Product Solutions
SKU: TEN-0c9496
Price: 49.99 USD
Availability: OutOfStock

SKU:TEN-0c9496

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Tenney industrial vacuum ovens perform product testing and MIL-SPEC testing, and they can be incorporated into many commercial production processes. The chambers provide a complete vacuum system and control system that is pretested and ready to operate. You only need to connect the chamber to an electrical power source. The basic vacuum ovens are designed to function at vacuum levels up to 20 mm Hg (80,000' altitude). Vacuum pump systems of greater capacities are available with vacuum capabilities up to 0.169 mm Hg (200,000').

Product Specifications

Specifications Approximate Shipping Weight Uncrated

3800 lb

Specifications Control Interface

RS232

Specifications Control Tolerance

0.3 ºC

Specifications Exterior Depth

90 in | 228 cm

Specifications Exterior Height

68 1/2 in | 174 cm

Specifications Exterior Width

58 in | 147 cm

Specifications Frequency

60 Hz

Specifications Heating Time From Ambient To 100c

90 min

Specifications Interior Depth

48 in | 122 cm

Specifications Interior Height

48 in | 122 cm

Specifications Interior Width

48 in | 122 cm

Specifications Phase

Specifications Standard Accessories

Specifications Svo Models High Temperature Vacuum Ovens

Achieves temperatures from approximately 15°C above ambient to +150°C | Brine heating system on workspace walls | Fully insulated workspace | Vacuum conditioning as described for S Models. | VersaTenn V Control System

Specifications Temperature Range

Approximately +15°C above ambient to +150°C

Specifications Ultimate Vacuum

20 mmHg | 20.88 Torr

Specifications Uniformity

1 ºC

Specifications Vacuum Measurement

Feet

Specifications Vacuum Pump

Oil sealed rotary pump with gas ballast and solenoid valves for vacuum and vent

Specifications Voltage

208 V | 230 V
