65in Height Horizontal Flow Wall Module with HEPA/ULPA Filters
65in Height Horizontal Flow Wall Module with HEPA/ULPA Filters
SKU:HOR-7d053f
Create clean, particle-free environments with our 65in Horizontal Flow Wall Module. Versatile, efficient, and upgradable for superior cleanroom air quality.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
65in Height Horizontal Flow Wall Module with HEPA/ULPA Filters
$1,499.99
Quantity: 1
Claim Your Seller Account
65in Height Horizontal Flow Wall Module with HEPA/ULPA Filters
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

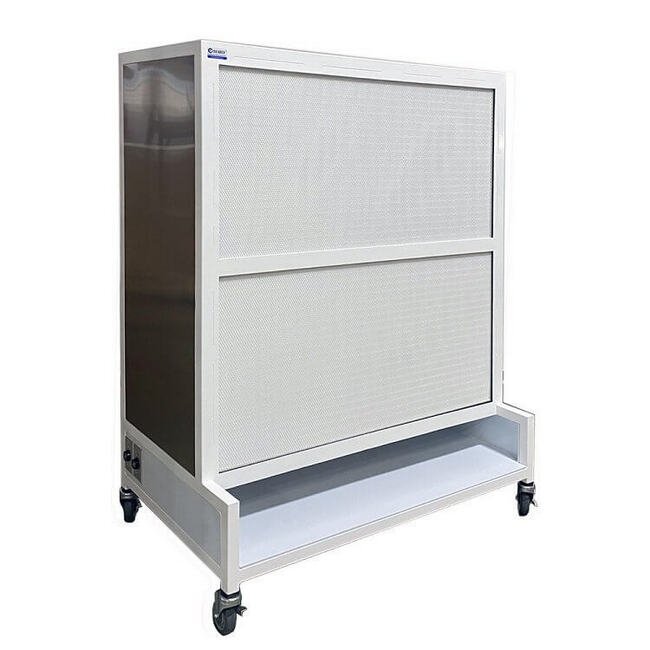

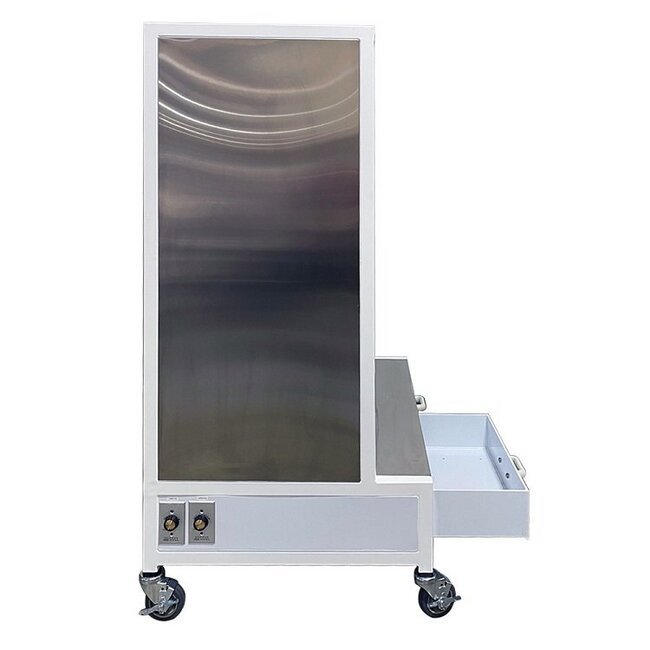

The 65-inch Height Horizontal Flow Wall Module is a versatile solution for creating cleanroom environments or tunnel systems meeting ISO5/class 100 standards. Constructed with polypropylene/coated steel, it offers a clean, particle-free air zone with an average air velocity of 90 ft/min. Featuring a mobile free-standing design with lockable casters, this unit includes two fan filter modules and can be upgraded to 304 stainless steel with ULPA filters for 99.999% particle removal efficiency. With additional options like UV-C sanitation light and sliding drawers, it ensures a high-quality, customizable clean air solution.
Product Specifications
Additional Information Additional Information
Mobile free-standing Laminar flow wallConstructed of epoxy powder coated steel.Construction Material also available in stainless steel.Bottom Shelf & Optional drawers are made of Polypropylene.Polypropylene is highly resistant to corrosive agents.They can be placed individually or in groups to form a wall for a cleanroomAir Flow (High Speed): 580 CFM Per FFUIncludes two fan filter module meets IEST recommended practices in terms of low sound and energy consumption.At 90 FPM, 30" from the filter face, the sound level is measured at 51 dBA. At its highest speed, the moduleâs energy consumption is 340 watts.HEPA filters are 99.99% efficient at removing 0.3µm or larger particles. Filters can be upgraded to ULPA filters that are 99.999% efficient at removing 0.12µm or larger particles.The module includes removable fiberglass pre-filter.
Options Options

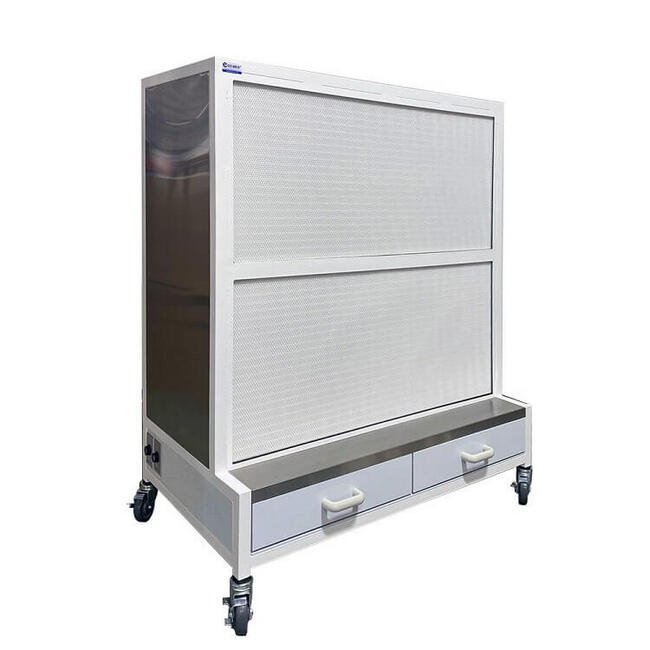

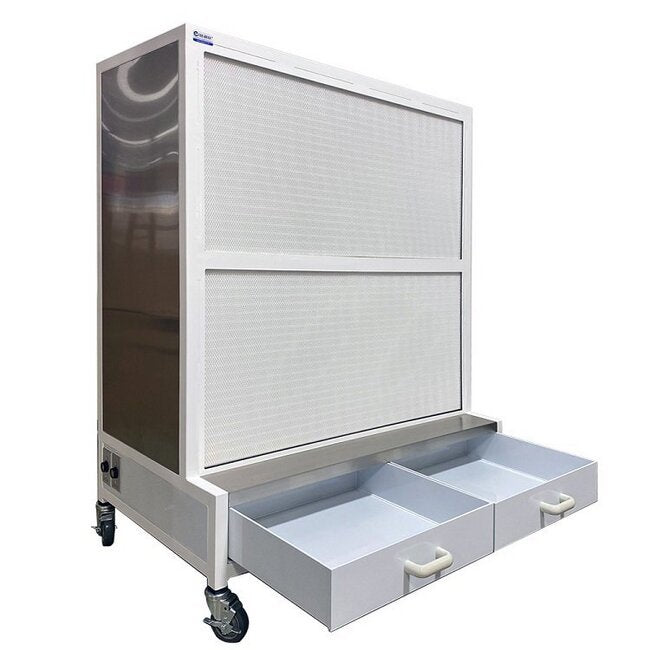

Upgrade to 304 stainless steel.Filter upgrade to ULPA filters that are 99.999% efficient at removing 0.12µm particles.30ââ UV-C sanitation light with a manual switch behind the filter.Two Sliding Drawer , Polypropylene
Specifications Air Flow Direction
Horizontal
Specifications Average Air Velocity
90 ft/min
Specifications Filter Area Height
47 in
Specifications Filter Area Width
46 in
Specifications Hood Width
4 ft
Specifications Material
Polypropylene / Coated Steel
Specifications Overall Depth
30 in
Specifications Overall Height
65 in
Specifications Overall Width
51 in
Specifications Sash Style
No Sash
Specifications Style
Free Standing
