65mm Telecentric Lens - SO-TEL-H62C-0758
65mm Telecentric Lens - SO-TEL-H62C-0758
SKU:STO-292eef
High-performance 65mm Telecentric Lens for precise imaging needs. Meets Govt. standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
65mm Telecentric Lens - SO-TEL-H62C-0758
$349.99
Quantity: 1
Claim Your Seller Account
65mm Telecentric Lens - SO-TEL-H62C-0758
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

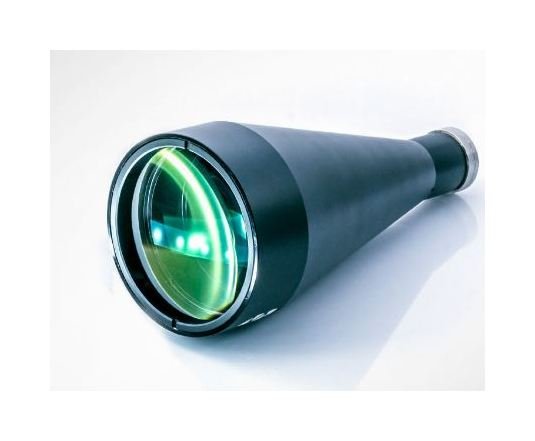

The SO-TEL-H62C-0758 65mm Telecentric Lens delivers unparalleled precision with a 65mm working distance and an 11mm image circle diameter. With a magnification of 3.929 and a nominal telecentricity of 0.11, this lens ensures accurate and distortion-free imaging. It meets Federal/DoD procurement standards, GSA requirements, and FAR compliance factors, making it ideal for government and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Depth Of Field
0.11 mm
Specifications Distortion Nominal
0.06 %
Specifications Fov
2.8 mm
Specifications Fov 12 Inch Sensor 64 X 48mm
1.6X1.2
Specifications Fov 13 Inch Sensor 48 X36mm
1.2X0.9
Specifications Fov 23 Inch Sensor 845 X 707mm
2.11X1.77
Specifications F Number
F17.8
Specifications Image Sf Lpmm Mtf 03
55
Specifications Image Size
11 mm
Specifications Magnification
3.929
Specifications Mount
C
Specifications Object Image Distance
185.6 mm
Specifications Resolution
2.9 µm
Specifications Telecentricity Nominal
0.11
Specifications Working Distance
65 mm
