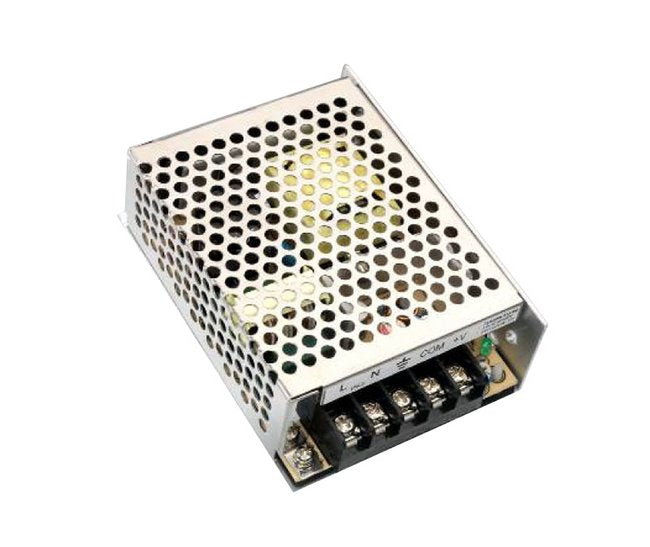

65W Single Output Enclosed Power Supply - AEU 65 Series
65W Single Output Enclosed Power Supply - AEU 65 Series
SKU:POW-43f433
Reliable 65W single output power supply with adjustable voltage range & European EMC compliance
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
65W Single Output Enclosed Power Supply - AEU 65 Series
$49.99
Quantity: 1
Claim Your Seller Account
65W Single Output Enclosed Power Supply - AEU 65 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 65W AEU 65 Series Single Output Power Supply is meticulously engineered for applications demanding high reliability, ideal for industrial and telecommunications markets. With compliance to European EMC standards and the Low Voltage directive, this power supply ensures exceptional performance and stability. Featuring an adjustable output voltage range of 22.8 to 25.2V, precise regulation, and efficient power delivery, it is a versatile solution for a wide range of power supply needs.
Product Specifications
Emc And Safety Specifications At 25 C Emi Emissions
Compliance to EN55022, CISPR22 Class B (Conducted & Radiated)
Emc And Safety Specifications At 25 C Ems Immunity
Compliance to EN61000-4-2, 3-6, 8 & 11; EN55024 heavy, light industry level, criteria A
Emc And Safety Specifications At 25 C Harmonic Current
Compliance to EN61000-3-2, 3
Emc And Safety Specifications At 25 C Note For Emc And Safety Sp
The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Emc And Safety Specifications At 25 C Safety Approval
UL 60950-1, (Insulation Class -1)
Environmental Specifications At 25 C Non Condensing Relative Ope
20 to 90 %
Environmental Specifications At 25 C Non Condensing Relative Sto
10 to 95 %
Environmental Specifications At 25 C Operating Temperature At Fu
-20 to 50 ºC
Environmental Specifications At 25 C Storage Temperature
-40 to 85 ºC
Environmental Specifications At 25 C Temperature Drift 0 To 50 C
< 0.03 %/ºC
Environmental Specifications At 25 C Vibration
10 to 500 Hz, 2G 10 min/cycle, period of 60 min, each X, Y & Z axis
General Specifications At 25 C Alternating Current Ac Dielectric
0.5 kV
General Specifications At 25 C Cooling
Natural Convection
General Specifications At 25 C Direct Current Dc Dielectric Stre
4.3 kV

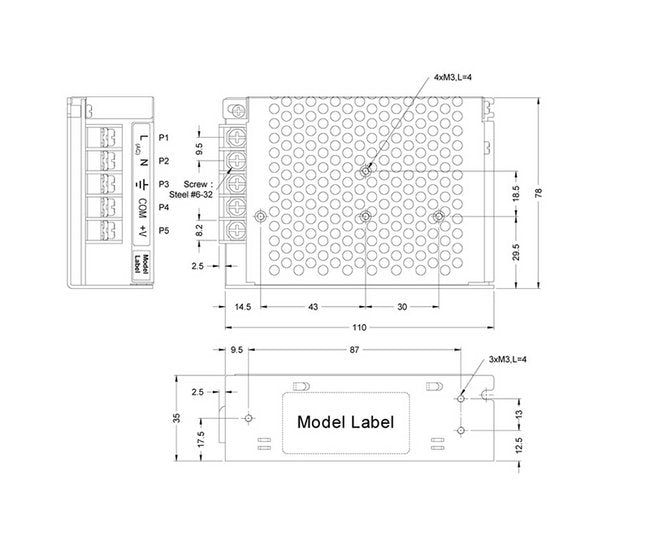

General Specifications At 25 C Height
35.0 mm | 1.38 in
General Specifications At 25 C Isolation Resistance At 500 Vdc I
100 MO
General Specifications At 25 C Isolation Resistance At 500 Vdc O
100 MO
General Specifications At 25 C Length
110 mm | 4.3 in
General Specifications At 25 C Minimum Mean Time Between Failure
250 K hr
General Specifications At 25 C Warranty
3 years
General Specifications At 25 C Weight
200 g
General Specifications At 25 C Width
78 mm | 3.1 in
Input Characteristics At 25 C Alternating Current Ac Input Volta
90 to 264 V
Input Characteristics At 25 C Direct Current Dc Input Voltage
127 to 373 V
Input Characteristics At 25 C Input Current At 115 Vac Root Mean
1.6 A
Input Characteristics At 25 C Input Current At 230 Vac
0.8 A
Input Characteristics At 25 C Input Frequency Range
47 to 63 Hz
Input Characteristics At 25 C Leakage Current At 240 Vac
< 2.4 mA
Input Characteristics At 25 C Maximum Inrush Current At 115 Vac
30 A
Input Characteristics At 25 C Maximum Inrush Current At 230 Vac
60 A
Note Note

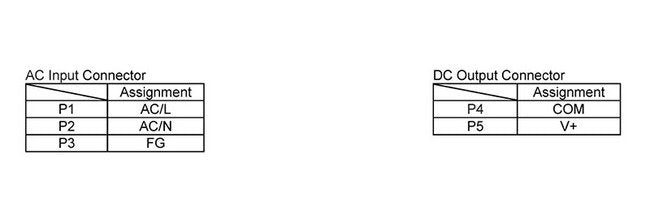

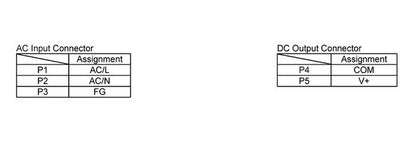

All I/O connection shall Follow specified Model Label.Maximum Temperature at Full Load 50ºC
Output Characteristics At 25 C Adjustable Output Voltage Range
22.8 to 25.2 V
Output Characteristics At 25 C Direct Current Dc Output Voltage
24 V
Output Characteristics At 25 C Direct Current Dc Over Voltage Pr
27.6 to 32.4 V
Output Characteristics At 25 C Direct Current Dc Voltage Toleran
±1.5 %
Output Characteristics At 25 C Output Power Convection
65 W
Output Characteristics At 25 C Ripple And Noise Voltage At Peak
200 mV
