660-Gallon Horizontal Air Receiver Tank, 165-psi MAWP
660-Gallon Horizontal Air Receiver Tank, 165-psi MAWP
SKU:REC-fd5fd5
Durable 660-gal Horizontal Air Receiver Tank, 165-psi MAWP for efficient compressed air storage. Ideal for industrial applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
660-Gallon Horizontal Air Receiver Tank, 165-psi MAWP
$1,499.99
Quantity: 1
Claim Your Seller Account
660-Gallon Horizontal Air Receiver Tank, 165-psi MAWP
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

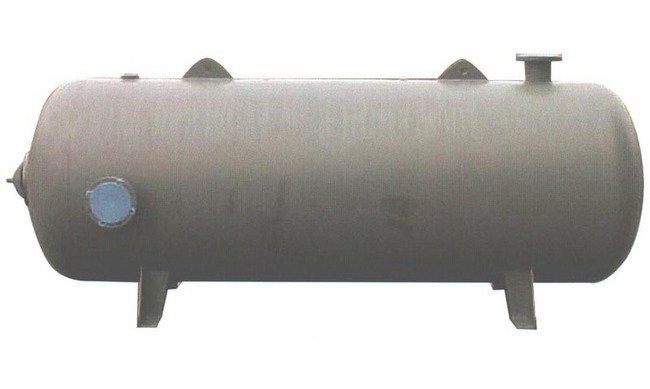

The 660-gallon Horizontal Air Receiver Tank with a Maximum Allowable Working Pressure (MAWP) of 165 psi is a robust and reliable solution for storing compressed air. With a nominal capacity of 660 gallons and dimensions optimized for space efficiency, this tank is suitable for a wide range of industrial applications. Its durable construction and strategic openings such as the 2-inch N.P.T. port for easy installation make it a versatile choice for institutions and government agencies seeking high-quality air receivers.

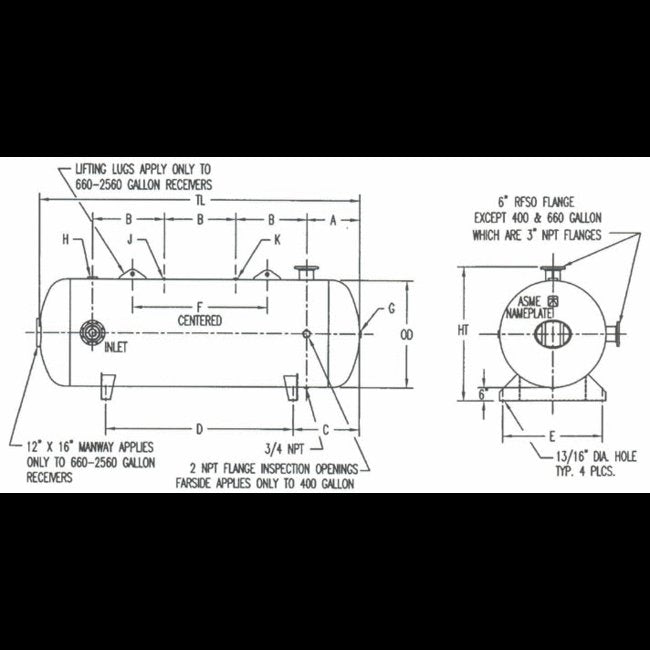

Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Dimension A
18.00 inches
Specifications Dimension B
27.00 inches
Specifications Dimension C
23.50 inches
Specifications Dimension D
70.00 inches
Specifications Dimension E
39.00 inches
Specifications Dimension F
57.00 inches
Specifications Ht
48.00 inches
Specifications Mawp
165 psi
Specifications Nominal Capacity
660 gal | 88.24 ft³
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
3 inches
Specifications Npt Opening J
1/4 inches
Specifications Npt Opening K
1 inches
Specifications Od
42.00 inches
Specifications Tl
117.00 inches
Specifications Tw
1375
