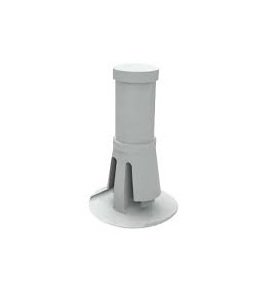

68 Series .187 Chassis Hole PCB Support Spacer

Name: 68 Series .187 Chassis Hole PCB Support Spacer
Brand: All Electronics Hardware
SKU: 01C-133566
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-133566

Enhance circuit board stability with the 68 Series .187 Chassis Hole PCB Support Spacer. Meets ASTM standards, RoHS compliant, and suitable for diverse temperature ranges.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

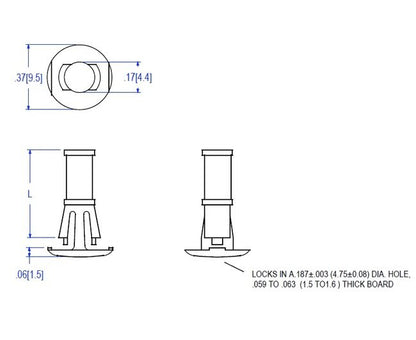

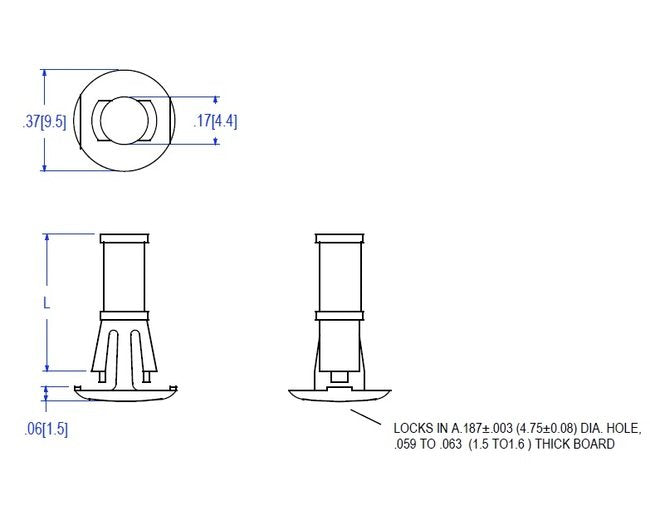

The 68 Series .187 Chassis Hole PCB Support Spacer is designed for circuit board supports, featuring a chassis hole diameter of .187 inches and a panel thickness of .062 inches. Manufactured with Nylon 66 UL94V-2 material (UL94V-0 available), this spacer meets ASTM D 4066 and PA0113 standards. RoHS compliant and with a temperature range of -40 to 185F (-40 to 85C), it ensures reliability and durability in various environments. Ideal for applications requiring precise PCB support and excellent thermal performance.

Product Specifications

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications L 015

.563 (14.3) inches (mm)

Specifications Panel Thickness

.062 (1.6) inches (mm)

68 Series .187 Chassis Hole PCB Support Spacer
