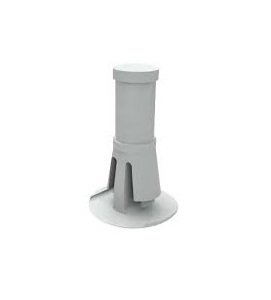

68 Series Nylon Chassis Hole Spacer .187 for Circuit Board Supports
68 Series Nylon Chassis Hole Spacer .187 for Circuit Board Supports
SKU:01C-495ba4
Durable Nylon .187 Chassis Hole Spacer for Circuit Board Supports. RoHS Compliant, ASTM D 4066. Ideal for a .062 panel thickness.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
68 Series Nylon Chassis Hole Spacer .187 for Circuit Board Supports
$14.99
Quantity: 1
Claim Your Seller Account
68 Series Nylon Chassis Hole Spacer .187 for Circuit Board Supports
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 68 Series .187 Chassis Hole Spacer is designed for Circuit Board Supports, offering precise support for a .062 panel thickness. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA0113 standards. This RoHS Compliant spacer has a temperature range of -40 to 185F (-40 to 85C), ensuring durability in varied conditions. With a chassis hole diameter of .187 (4.8mm) and dimensions of .312 (7.9) inches (mm), this spacer provides stable and reliable support for your circuit board applications.

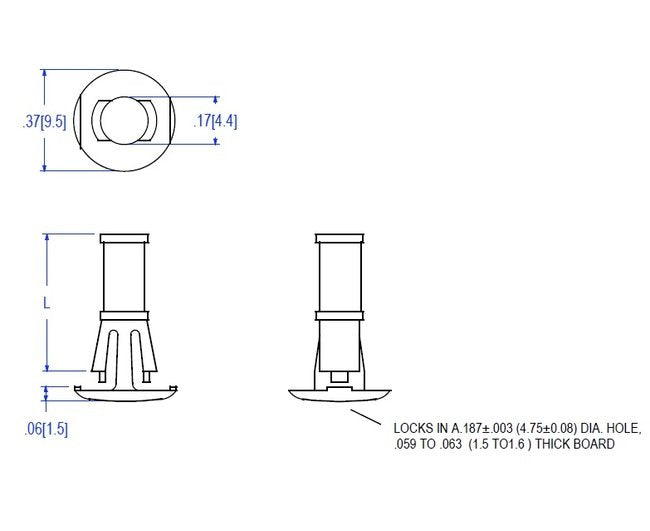

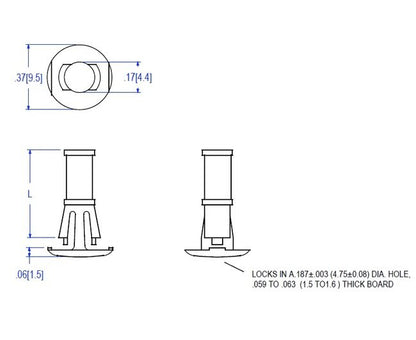

Product Specifications
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications L 015
.312 (7.9) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
