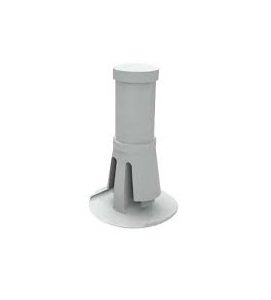

68 Series Nylon PCB Support Spacer with .187 Chassis Hole
68 Series Nylon PCB Support Spacer with .187 Chassis Hole
SKU:01C-53d385
Securely mount circuit boards with the 68 Series Nylon PCB Support Spacer. RoHS compliant, precise specifications, and durable Nylon 66 construction.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
68 Series Nylon PCB Support Spacer with .187 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
68 Series Nylon PCB Support Spacer with .187 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 68 Series Nylon PCB Support Spacer with a .187 (4.8mm) chassis hole is a reliable solution for secure mounting of circuit boards. This spacer features a panel thickness of .062 (1.6mm) and is constructed from Nylon 66 material, meeting UL94V-2 standards (UL94V-0 available). It is RoHS compliant and can withstand temperatures ranging from -40 to 185F (-40 to 85C). With precise specifications and durable build, this spacer ensures stable support for circuit boards in various applications.
Ready to Grow Without Cash Flow Constraints?

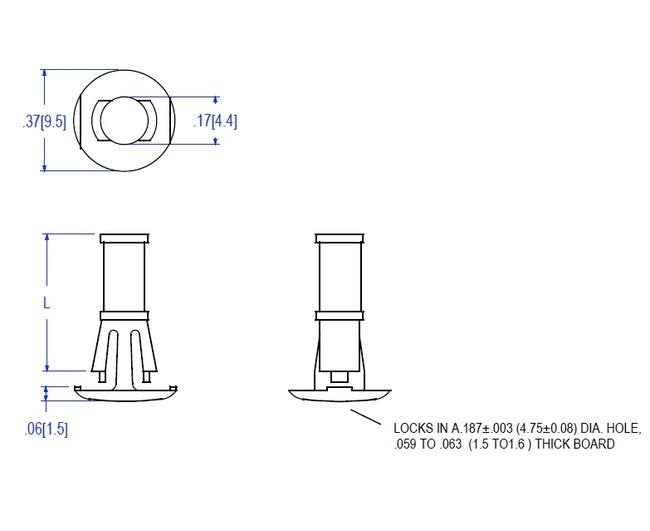

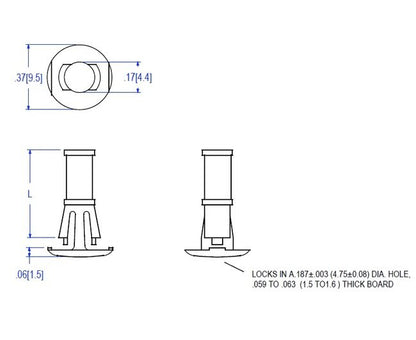

Product Specifications
Specifications Chassis Hole Diameter
.187 (4.8) inches (mm)
Specifications L 015
.625 (15.9) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
