68 Series PCB Support Spacer with .187 Chassis Hole

Name: 68 Series PCB Support Spacer with .187 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-e9ad9c
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-e9ad9c

Durable 68 Series PCB Support Spacer with .187 Chassis Hole, meets ASTM standards, RoHS compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

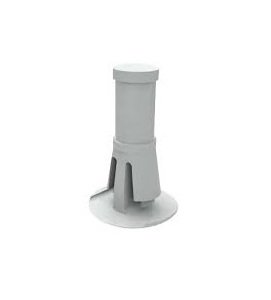

The 68 Series PCB Support Spacer features a durable Nylon 66 construction, UL94V-2 rated (UL94V-0 available) for enhanced safety. With a precise chassis hole diameter of .187 inches and a panel thickness of .062 inches, this spacer provides reliable support for circuit boards. It meets ASTM D 4066 and PA0113 standards, ensuring quality and compliance. RoHS compliant and offering a temperature range of -40 to 185F (-40 to 85C), this spacer is ideal for various applications where stability and safety are paramount.

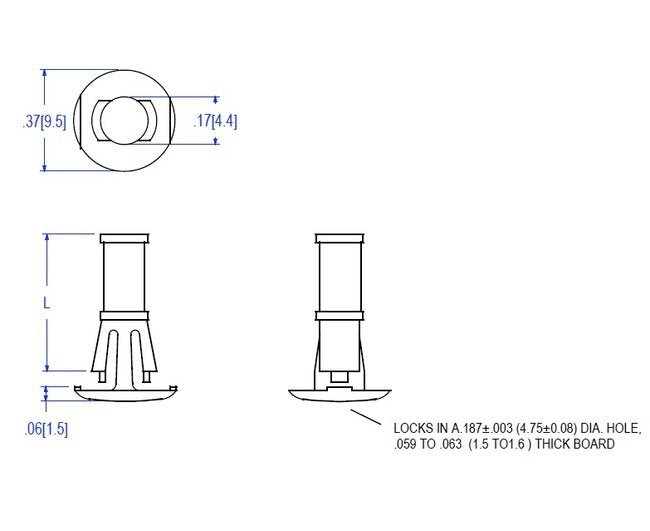

Product Specifications

Specifications Chassis Hole Diameter

.187 (4.8) inches (mm)

Specifications L 015

.375 (9.5) inches (mm)

Specifications Panel Thickness

.062 (1.6) inches (mm)

68 Series PCB Support Spacer with .187 Chassis Hole
