69 Series Circuit Board Supports
69 Series Circuit Board Supports
SKU:01C-87c4ec

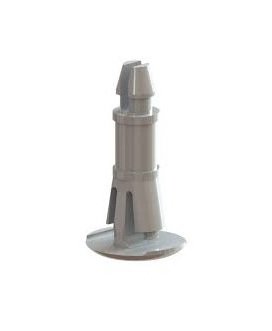

Durable 69 Series PCB supports for .062 panel & chassis thicknesses with .125 board hole & .187 chassis hole. RoHS compliant & temperature-resistant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
69 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
69 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

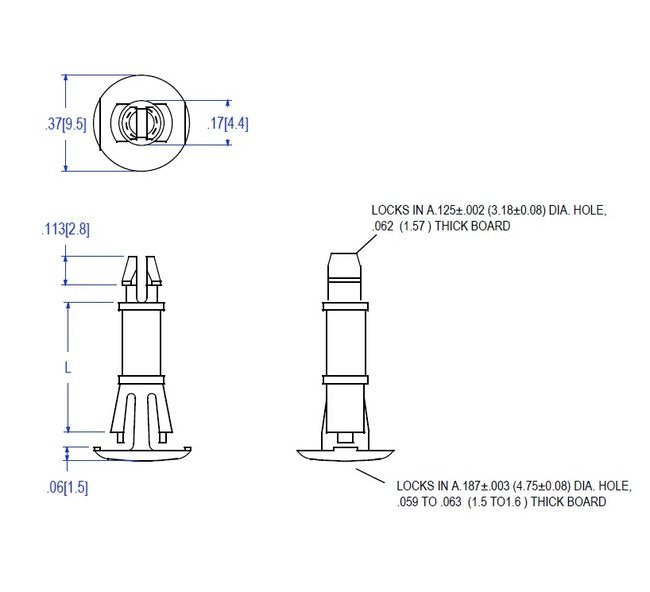

The 69 Series PCB supports are designed for .062 panel and chassis thicknesses, with .125 board hole and .187 chassis hole dimensions. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these reverse locking board supports are RoHS compliant and meet ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185 F (-40 to 85 C), these supports offer durability and reliability for your circuit board mounting needs.
Product Specifications
Specifications L 015
.375 (9.5) inches (mm)
