69 Series Locking Board Support Set

Name: 69 Series Locking Board Support Set
Brand: All Electronics Hardware
SKU: 01C-6bf658
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-6bf658

Secure your circuit boards with precision using the 69 Series Locking Board Support Set. Crafted from Nylon 66 UL94V-2, these supports offer reliability and durability for a range of applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

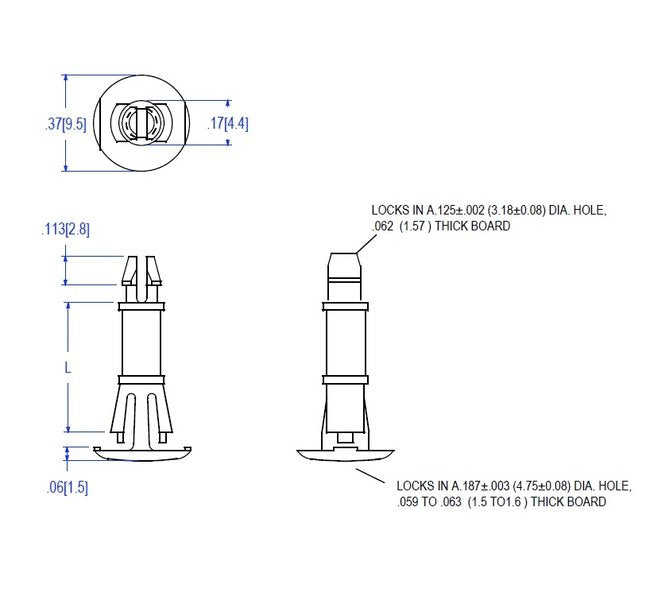

The 69 Series Locking Board Support Set is a critical component for circuit board installations, designed for precise fits. This set includes reverse locking supports crafted from Nylon 66 UL94V-2 material (UL94V-0 available on request) with ASTM D 4066 PA111 compliance. With a .125 PCB hole and .187 chassis hole, these supports accommodate .062 PCB and chassis thicknesses. Operating within a temperature range of -40 to 185 F (-40 to 85 C), these supports guarantee durability and secure mounting, offering a secure and stable solution for your circuit board needs.
