69 Series Reverse Locking PCB Support
69 Series Reverse Locking PCB Support
SKU:01C-6f3c27
Securely support PCBs with the 69 Series Reverse Locking PCB Support, made of Nylon 66 UL94V-2 material, RoHS compliant, and suitable for -40 to 185°F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
69 Series Reverse Locking PCB Support
$24.99
Quantity: 1
Claim Your Seller Account
69 Series Reverse Locking PCB Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

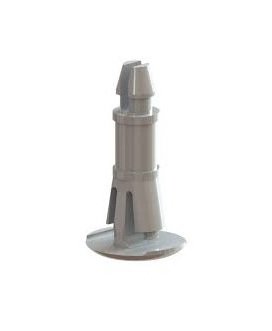

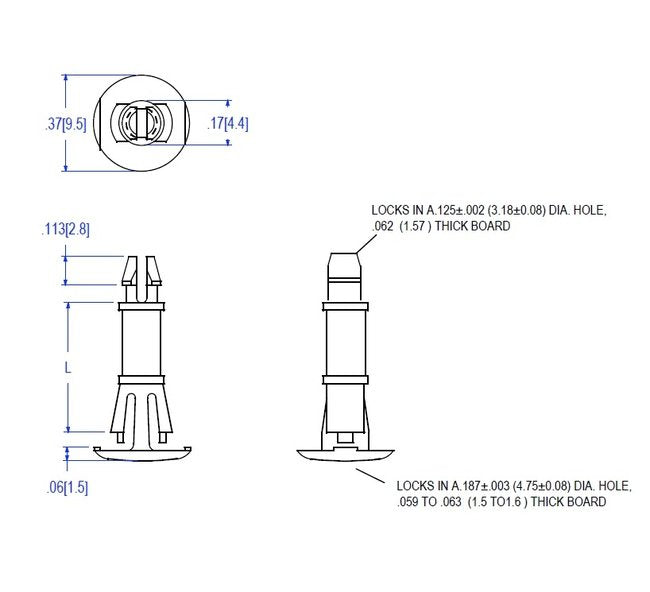

The 69 Series Reverse Locking PCB Support is designed for .062 PCB and chassis thickness. It features a .125 PCB hole and a .187 chassis hole, made of durable Nylon 66 UL94V-2 material. This support is color-coded natural and is RoHS compliant, ensuring reliability in a temperature range from -40 to 185°F (-40 to 85°C). Its reverse locking mechanism provides secure support for circuit boards, meeting the stringent ASTM D 4066 PA111 standards.
Product Specifications
Specifications L 015
.500 (12.7) inches (mm)
