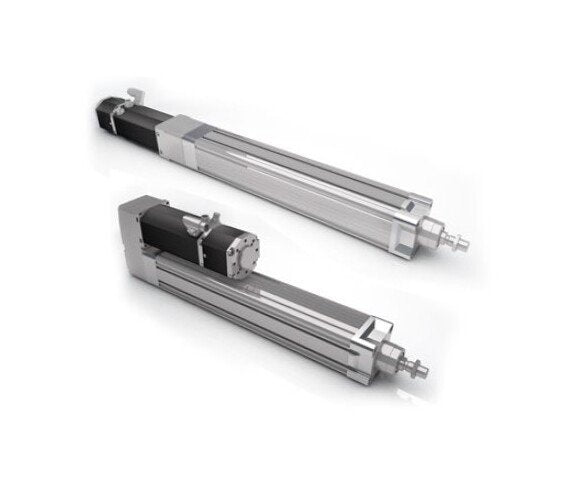

692N Constant Force Electric Cylinder by Dunkermotoren
692N Constant Force Electric Cylinder by Dunkermotoren
SKU:ELE-af201b
Experience precise linear motion control with the 692N Constant Force Electric Cylinder by Dunkermotoren, ideal for high-force applications.
Regular price
$1,200.00
Regular price
Sale price
$1,200.00
Unit price
per
Initiate Order
692N Constant Force Electric Cylinder by Dunkermotoren
$1,200.00
Quantity: 1
Claim Your Seller Account
692N Constant Force Electric Cylinder by Dunkermotoren
$1,200.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 692N Constant Force Electric Cylinder by Dunkermotoren offers strokes up to 800mm with a brushless DC servomotor, ideal for precise and efficient linear motion control. With a constant force of 692N, maximum traverse speed of 70 mm/s, and features like IO mode and CANopen version availability, this cylinder ensures maintenance-free operation, high force delivery, and precise positioning. Meeting industry standards like CE and UL certifications, this compact and space-saving cylinder is a reliable alternative for pneumatic cylinders, providing high efficiency and low noise operation.
Product Specifications
Additional Information Additional Information
Compact and space savingEasy configuration of max. 14 positions (PI motor)Several BUS interfaces availablePLG 63 on request
Features Features
IO modeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeHigh efficiencyLow noiseSelf-locking ratios availableHigh forceHigh dynamicDigital inputsDigital outputsAnalog inputsOscilloscope software availableCondition monitoringProgrammableVibration resistance
Note Note
Not applicable for motions on mechanical stop.
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
692 N
Technical Specs Feedback Integrated
4096 cycles/rev
Technical Specs Industry Standardscertifications
European Conformity (CE) | Underwriters Laboratories (UL)
Technical Specs Lifetime L10
100 km
Technical Specs Maximum Acceleration
1 mm/s²
Technical Specs Maximum Traverse Speed
70 mm/s
Technical Specs Motor Type
BG 75x75
Technical Specs Nominal Current
12.7 A
Technical Specs Nominal Direct Current Dc Voltage
40 to 48 V
Technical Specs Peak Current 2 Second S
50 A
Technical Specs Peak Force
1000 N
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP54S)
Technical Specs Repeatability
0.07 mm
Technical Specs Spindle Pitch
4 mm
Technical Specs Spindle Version
LS (Lead Screw)
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 800 mm
