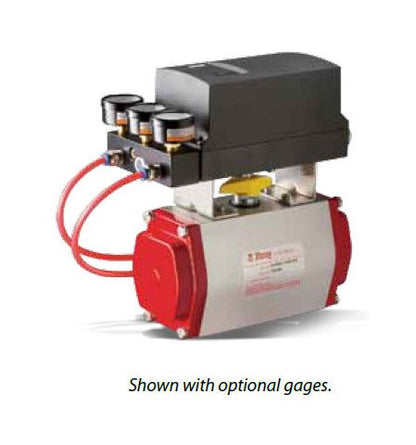

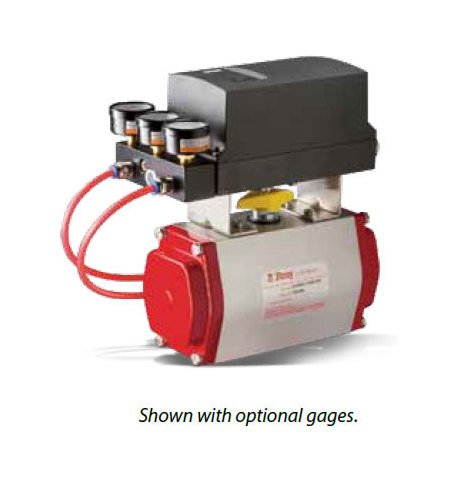

6A Electro-Pneumatic Positioner
6A Electro-Pneumatic Positioner
SKU:ACT-bb0184
Achieve precise pneumatic control with the Series 6A Positioner's durable design and wide temperature range. Ideal for industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
6A Electro-Pneumatic Positioner
$349.99
Quantity: 1
Claim Your Seller Account
6A Electro-Pneumatic Positioner
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 6A Electro-Pneumatic Positioner offers precise control with specifications including supply pressure of 20 to 102 psi, analog input signal of 4 to 20 mA, and temperature range from -22 to +176 ºF. Built with fiberglass-reinforced polymer housing, stainless steel fasteners, and NEMA 4/4x and IP66 protection, it ensures durability and reliability. With approvals from FM, CSA, CE, and ATEX, this positioner is suitable for various industrial applications, meeting stringent quality and performance standards.
Product Specifications
Specifications Air Consumption
<0.00035 scfm
Specifications Analog Input Signal Dc
4 to 20 mA
Specifications Available Approvals
FM, CSA, CE, ATEX
Specifications Bus Input Signal
HART, Foundation Fieldbus, Profibus PA Connections
Specifications Control Element Type
Piezoelectric
Specifications Emc Requirements
EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98
Specifications Housing Fasteners Material
Stainless Steel
Specifications Housing Material
Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection
Specifications Hysteresis
<0.2 %
Specifications Input Signal 2 Conduit Entries
1/2" NPT (M20x1.5)

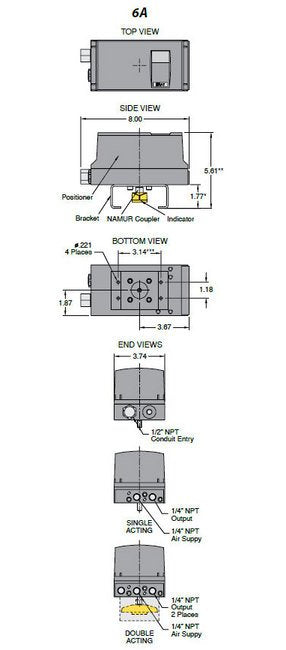

Specifications Positioner Mounting
VDI/VDE 3845 (NAMUR)
Specifications Position Indicator Material
ABS polymer
Specifications Protection Class
NEMA 4,4x and IP66
Specifications Repeatability
0.32 %
Specifications Resolution
<0.05 %
Specifications Supply Input Signal
1/4" NPT (G 1/4")
Specifications Supply Pressure
20 to 102 psi | 1.4 to 7 bar
Specifications Temperature Range
-22 to +176 ºF | -30 to +80 ºC
Specifications Weight
2.0 lbs | 0.9 kg
