6A Electro-Pneumatic Positioner for Actuators

Name: 6A Electro-Pneumatic Positioner for Actuators
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-da3efa
Price: 399.99 USD
Availability: OutOfStock

SKU:ACT-da3efa

Achieve precise control with the Series 6A Electro-Pneumatic Positioner, designed for durability and optimal performance.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

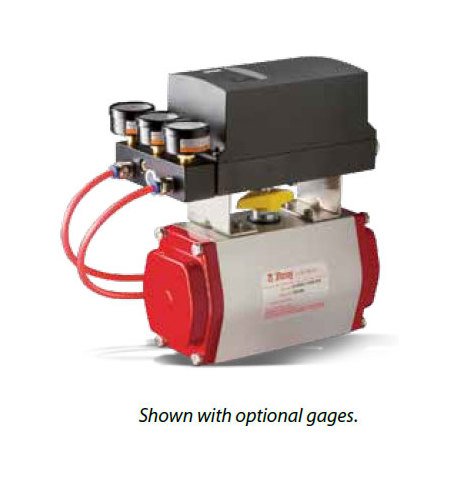

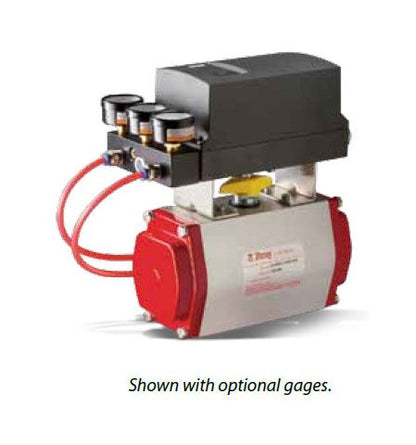

The Series 6A Electro-Pneumatic Positioner offers precise control with supply pressure ranging from 20 to 102 psi. This advanced positioner is designed for optimal performance, featuring low air consumption of <0.00035 scfm and compatibility with various input signals like 4-20 mA DC and HART. With robust construction including NEMA 4, 4x and IP66 protection, stainless steel housing fasteners, and fiberglass-reinforced polymer housing, this positioner ensures durability in diverse applications. It meets FM, CSA, CE, and ATEX approvals, making it ideal for institutional and industrial use.

Product Specifications

Specifications Air Consumption

<0.00035 scfm

Specifications Analog Input Signal Dc

4 to 20 mA

Specifications Available Approvals

FM, CSA, CE, ATEX

Specifications Bus Input Signal

HART, Foundation Fieldbus, Profibus PA Connections

Specifications Control Element Type

Piezoelectric

Specifications Emc Requirements

EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98

Specifications Housing Fasteners Material

Stainless Steel

Specifications Housing Material

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection

Specifications Hysteresis

<0.2 %

Specifications Input Signal 2 Conduit Entries

1/2" NPT (M20x1.5)

Specifications Positioner Mounting

VDI/VDE 3845 (NAMUR)

Specifications Position Indicator Material

ABS polymer

Specifications Protection Class

NEMA 4,4x and IP66

Specifications Repeatability

0.32 %

Specifications Resolution

<0.05 %

Specifications Supply Input Signal

1/4" NPT (G 1/4")

Specifications Supply Pressure

20 to 102 psi | 1.4 to 7 bar

Specifications Temperature Range

-22 to +176 ÂºF | -30 to +80 ÂºC

Specifications Weight

2.0 lbs | 0.9 kg
