6A Electro-Pneumatic Positioner with HART, Fieldbus, Profibus PA Connections

Name: 6A Electro-Pneumatic Positioner with HART, Fieldbus, Profibus PA Connections
Brand: Caylor Industrial Sales, Inc.
SKU: ACT-eaaa3f
Price: 289.99 USD
Availability: OutOfStock

SKU:ACT-eaaa3f

High-precision 6A Electro-Pneumatic Positioner with versatile input signals & durable construction.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

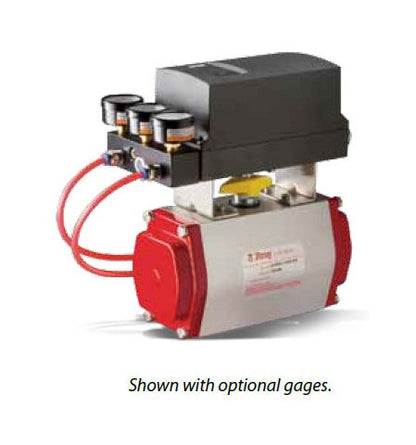

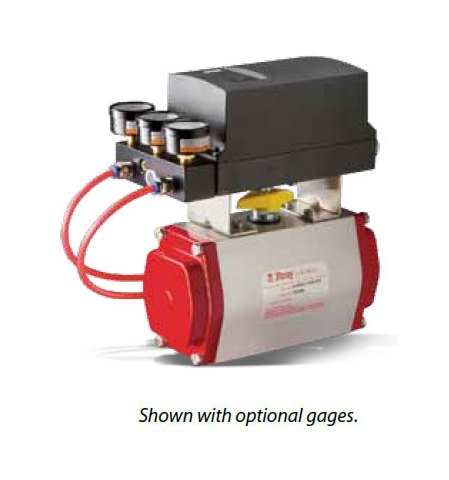

The Series 6A Electro-Pneumatic Positioner is a high-precision device designed for accurate control in pneumatic actuators. Featuring a supply pressure range of 20 to 102 psi, analog input signal of 4 to 20 mA, and versatile bus input signal options including HART, Foundation Fieldbus, and Profibus PA connections, this positioner ensures reliable performance. With a robust fiberglass-reinforced polymer housing, stainless steel fasteners, and NEMA 4, 4x, and IP66 protection class, it offers durability and EMC protection. Approved by FM, CSA, CE, and ATEX, it meets stringent regulatory standards for quality assurance.

Product Specifications

Specifications Air Consumption

<0.00035 scfm

Specifications Analog Input Signal Dc

4 to 20 mA

Specifications Available Approvals

FM, CSA, CE, ATEX

Specifications Bus Input Signal

HART, Foundation Fieldbus, Profibus PA Connections

Specifications Control Element Type

Piezoelectric

Specifications Emc Requirements

EN 61326/A1 Appendix A.1 | NAMUR NE21 August 98

Specifications Housing Fasteners Material

Stainless Steel

Specifications Housing Material

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection

Specifications Hysteresis

<0.2 %

Specifications Input Signal 2 Conduit Entries

1/2" NPT (M20x1.5)

Specifications Positioner Mounting

VDI/VDE 3845 (NAMUR)

Specifications Position Indicator Material

ABS polymer

Specifications Protection Class

NEMA 4,4x and IP66

Specifications Repeatability

0.32 %

Specifications Resolution

<0.05 %

Specifications Supply Input Signal

1/4" NPT (G 1/4")

Specifications Supply Pressure

20 to 102 psi | 1.4 to 7 bar

Specifications Temperature Range

-22 to +176 ÂºF | -30 to +80 ÂºC

Specifications Weight

2.0 lbs | 0.9 kg
