6HX Series 6-Element Fluoropolymer PTFE Heaters
6HX Series 6-Element Fluoropolymer PTFE Heaters
SKU:HEA-2516eb
Enhance your thermal processes with 6HX Fluoropolymer Heaters: 2000W, 6 elements, CE/CSA/UL certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
6HX Series 6-Element Fluoropolymer PTFE Heaters
$289.99
Quantity: 1
Claim Your Seller Account
6HX Series 6-Element Fluoropolymer PTFE Heaters
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

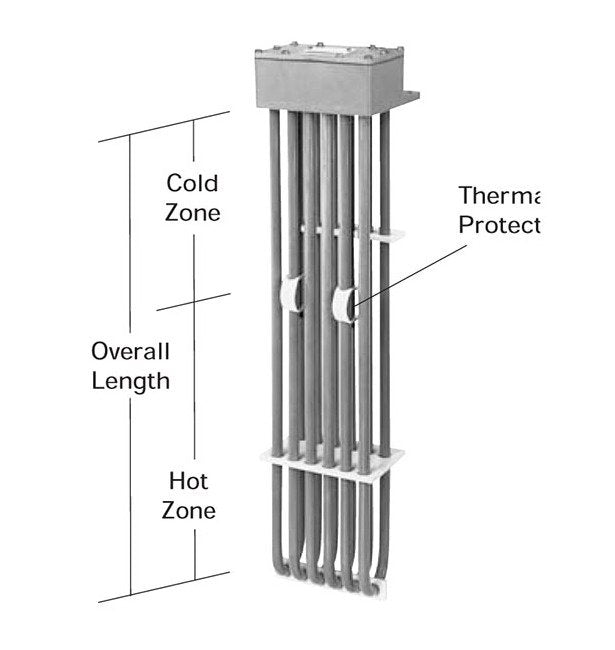

Experience superior heating with the 6HX Series 6-Element Fluoropolymer (PTFE) Heaters from Process Technology. These heaters feature 6 elements, delivering 2000W at a watt density of 10 W/in². With options for single or three-phase operation, they come with thermal overload protection and various resettable thermal protectors for different temperature solutions. Recommended guards ensure safety, with Fluoropolymer (PTFE) guards ideal for corrosive substances. Certified by CE, CSA, and UL, these heaters meet high-quality standards for reliability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX17G
Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
19 Pound
Specifications Volts
120 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
19.0 lbs | 8.6 kg
