6HX Series 6 Element PTFE Heaters
6HX Series 6 Element PTFE Heaters
SKU:HEA-25cf5b
High-performance 6-element PTFE heaters with precise thermal control. Ideal for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
6HX Series 6 Element PTFE Heaters
$799.99
Quantity: 1
Claim Your Seller Account
6HX Series 6 Element PTFE Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6HX Series 6 Element Fluoropolymer (PTFE) Heaters are expertly designed for precision heating applications, boasting 10,000 Watts power and a 10 W/in² watt density. With options for single or three-phase configurations, these heaters come with a range of thermal protectors to suit various solution temperatures. Manufactured by Process Technology, these heaters meet CE, CSA, and UL Listed certifications. Guards are available separately, with fluoropolymer (PTFE) guards recommended for solutions over 180°F. Ensure optimal heating performance and safety with these reliable PTFE heaters.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX59G

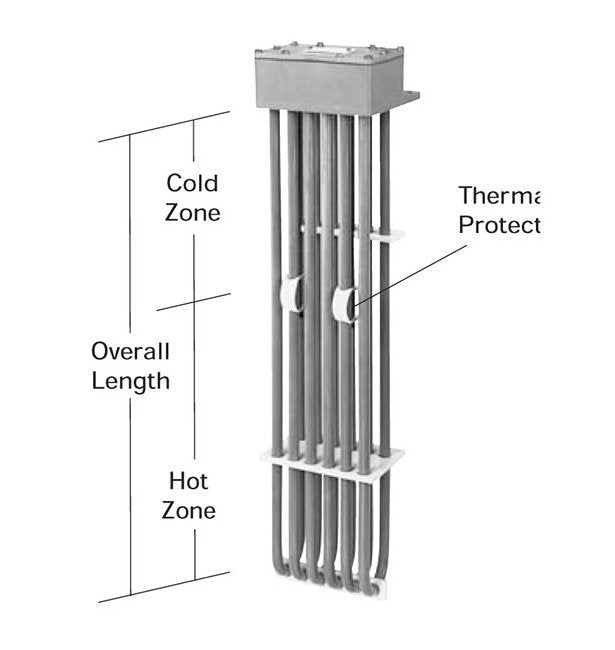

Specifications Hot Zone
47 " | 1194 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
40.0 Pound
Specifications Volts
480 V
Specifications Watts
10000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
40.0 lbs | 18.1 kg
