6HX Series Fluoropolymer Heaters, 6 Elements
6HX Series Fluoropolymer Heaters, 6 Elements
SKU:HEA-f340de
Powerful 6-element Fluoropolymer (PTFE) Heaters for industrial applications, ensuring efficient and reliable performance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
6HX Series Fluoropolymer Heaters, 6 Elements
$549.99
Quantity: 1
Claim Your Seller Account
6HX Series Fluoropolymer Heaters, 6 Elements
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

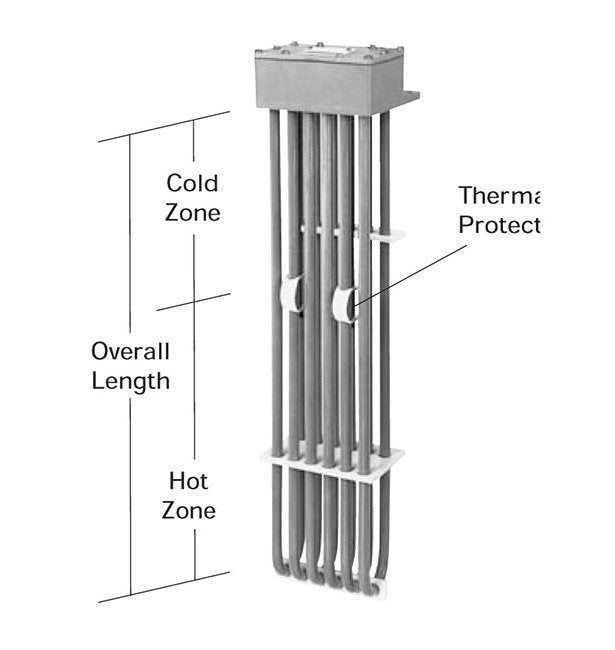

Experience exceptional heating performance with the 6HX Series 6 Element Fluoropolymer (PTFE) Heaters. Designed for industrial applications, these heaters offer 8000W power and a durable Fluoropolymer construction. Choose from thermal protectors for varying solution temperatures. Certified by CE, CSA, and UL Listed for quality assurance. Enhance safety with optional guards, including Fluoropolymer for high-temperature solutions.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX47G
Specifications Hot Zone
38 " | 965 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
33.0 Pound
Specifications Volts
240 V
Specifications Watts
8000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
33.0 lbs | 15.0 kg
