6HX Series Fluoropolymer (PTFE) Heaters - 6 Element
6HX Series Fluoropolymer (PTFE) Heaters - 6 Element
SKU:HEA-76e578
6HX Series 6 Element Fluoropolymer (PTFE) Heaters - Efficient and reliable industrial heating solutions with multiple thermal protection options.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
6HX Series Fluoropolymer (PTFE) Heaters - 6 Element
$849.99
Quantity: 1
Claim Your Seller Account
6HX Series Fluoropolymer (PTFE) Heaters - 6 Element
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

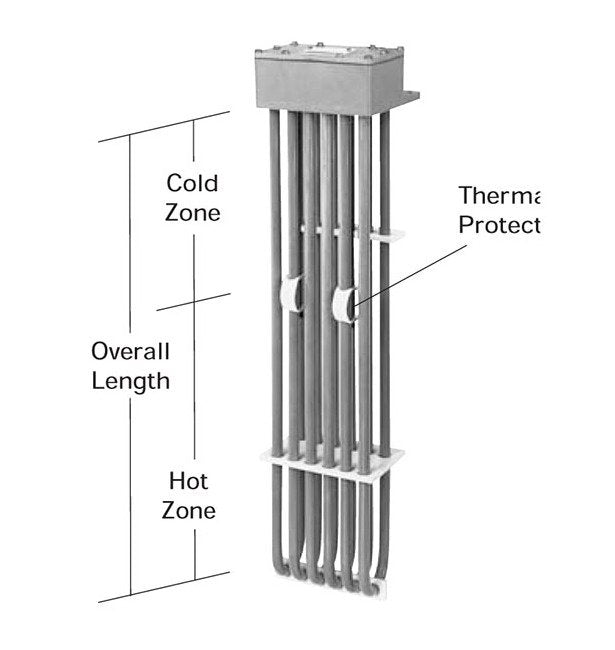

The 6HX Series Fluoropolymer (PTFE) Heaters with 6 elements offer exceptional heating performance for industrial processes. With a robust design and a Wattage of 12,000 W, these heaters ensure efficient heating with a Watt Density of 10 W/in². Choose from various thermal protector options based on your solution temperature requirements. Built to withstand challenging conditions, these heaters are recommended for solutions exceeding 180°F. Certified by CE, CSA, and UL, these Process Technology heaters are trusted for their reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX68G
Specifications Hot Zone
55 " | 1397 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
45.0 Pound
Specifications Volts
240 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
45.0 lbs | 20.4 kg
