6HX Series PTFE Heaters
6HX Series PTFE Heaters
SKU:HEA-4a6bc5
High-performance 6-element PTFE Heaters with 4000W power, versatile thermal protectors, and CE, CSA, UL certifications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters
$799.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

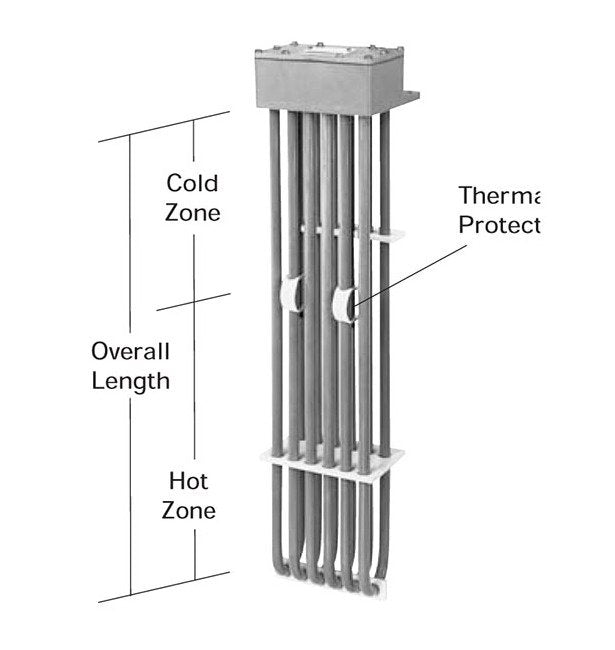

The 6HX Series PTFE Heaters are designed with six elements for optimal performance in industrial applications. These heaters offer a wattage of 4000W with a watt density of 10 W/in², ensuring efficient heat transfer. Featuring a hot zone of 21" and an overall length of 29", the heaters are constructed with durable fluoropolymer (PTFE) material. Choose from single or three-phase options and select from various thermal protector options for different temperature requirements. With certifications including CE, CSA, and UL Listed, these heaters meet stringent quality standards for reliable operation.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX29G
Specifications Hot Zone
21 " | 533 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
24.0 Pound
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
24.0 lbs | 10.9 kg
