6HX Series PTFE Heaters
6HX Series PTFE Heaters
SKU:HEA-1580ff
High-performance 6 Element Fluoropolymer Heaters with PTFE material, 8000W, and 480V. CE, CSA, and UL Listed certified.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters
$599.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

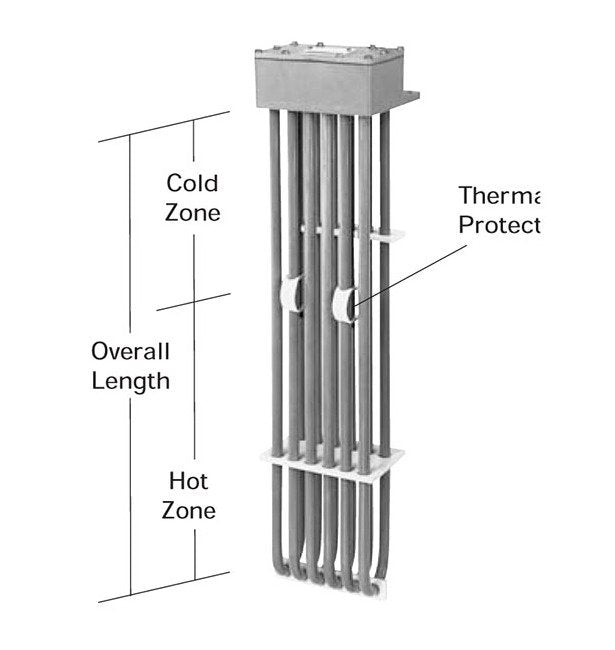

The 6HX Series 6 Element Fluoropolymer (PTFE) Heaters by Process Technology are highly efficient and durable electric immersion heaters designed for industrial applications. With a wattage of 8000W and a volt rating of 480V, these heaters offer superior performance and reliability. The PTFE material ensures compatibility with a wide range of solutions, making them ideal for use in various industries. The heaters come with multiple thermal protector options, ensuring safe operation and longevity. Meeting CE, CSA, and UL Listed certifications, these heaters are built to the highest quality standards for reliable performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX47G
Specifications Hot Zone
38 " | 965 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
33.0 Pound
Specifications Volts
480 V
Specifications Watts
8000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
33.0 lbs | 15.0 kg
