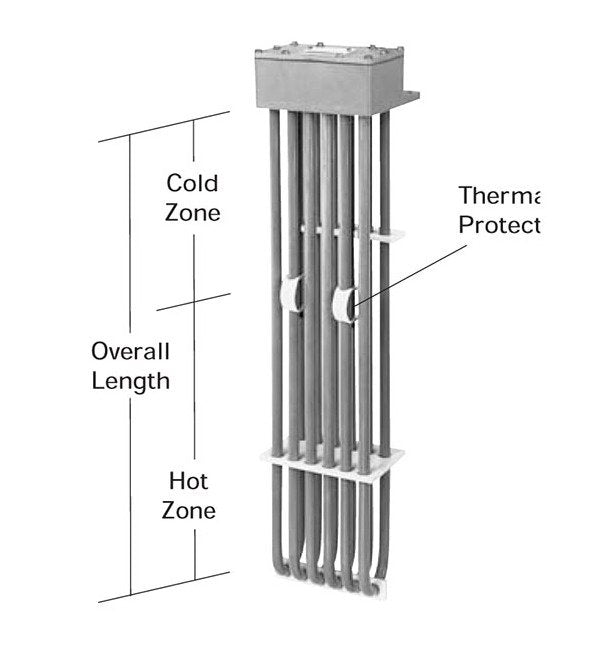

6HX Series PTFE Heaters - 6 Element Fluoropolymer
6HX Series PTFE Heaters - 6 Element Fluoropolymer
SKU:HEA-5948fe
High-performance 6-element Fluoropolymer (PTFE) Heaters with 10000W power, ideal for industrial heating applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters - 6 Element Fluoropolymer
$699.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters - 6 Element Fluoropolymer
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6HX Series 6 Element Fluoropolymer (PTFE) Heaters are designed to deliver reliable heating performance in industrial applications. With 6 elements and 10000W power, these heaters offer exceptional watt density and thermal protection options for solutions up to 250°F. Manufactured by Process Technology, these heaters come with certifications like CE, CSA, and are UL Listed. Guards sold separately. Enhance your heating efficiency with fluoropolymer (PTFE) guards, ideal for solutions exceeding 180°F.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX59G
Specifications Hot Zone
47 " | 1194 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
40.0 Pound
Specifications Volts
240 V
Specifications Watts
10000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
40.0 lbs | 18.1 kg
