6HX Series PTFE Heaters, 6 Element Fluoropolymer Heaters
6HX Series PTFE Heaters, 6 Element Fluoropolymer Heaters
SKU:HEA-a8c36c
High-performance 6HX Series PTFE Heaters with 6 elements, 4000W, 240V, and multiple thermal protector options for safety and efficiency.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters, 6 Element Fluoropolymer Heaters
$699.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters, 6 Element Fluoropolymer Heaters
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

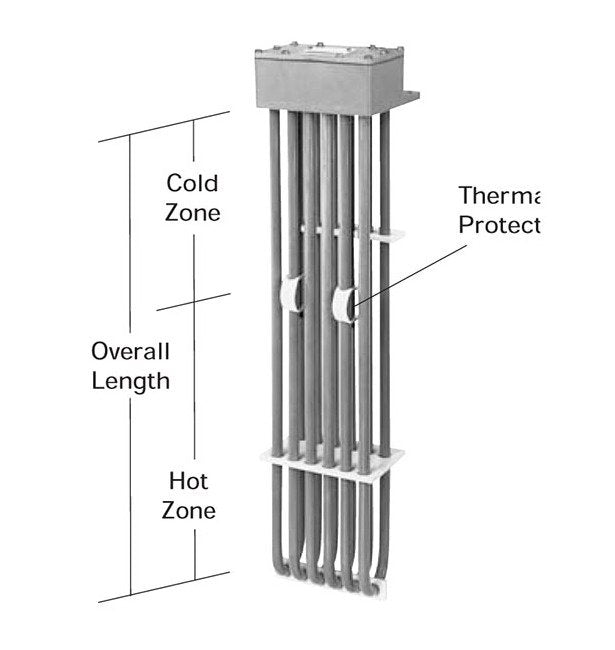

The 6HX Series 6 Element Fluoropolymer (PTFE) Heaters are designed for exceptional performance in a wide range of industrial applications. With a hot zone length of 21", these heaters deliver 4000W at 240V with a superior watt density of 10 W/in². Featuring multiple thermal protector options for different temperature requirements, ensuring safety and efficiency. Certified by CE, CSA, and UL, these heaters offer reliable heating solutions with the added benefit of optional PTFE guards for corrosive environments. Compliant with stringent industry standards, these heaters are a top choice for both consumer and institutional buyers.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX29G
Specifications Hot Zone
21 " | 533 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
24.0 Pound
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
24.0 lbs | 10.9 kg
