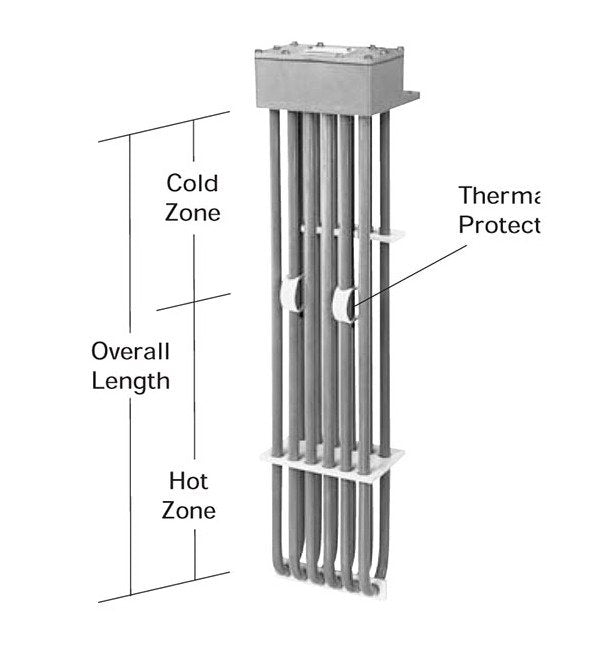

6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
SKU:HEA-5c8f6e
Efficient and reliable 6-element PTFE immersion heater with thermal protectors and optional guards. Certified for safety and performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$349.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6HX Series PTFE Heaters are precision-engineered with 6 elements for optimal heating efficiency. With options for single or three-phase operation and various thermal overload protectors, these heaters ensure safe and reliable performance. Recommended guards provide additional protection, with PTFE guards suitable for corrosive solutions above 180°F. Certified by CE, CSA, and UL, these heaters meet rigorous industry standards and are ideal for process heating applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX17G
Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
19 Pound
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
19.0 lbs | 8.6 kg
