6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
SKU:HEA-b78dcf
Efficient 6-element PTFE heaters with 2000W power, ideal for industrial use. CE, CSA, UL Listed for safety.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$349.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6HX Series 6 Element Fluoropolymer (PTFE) Heaters offer reliable heating solutions for industrial applications. With 2000W power, these heaters provide efficient operation with a watt density of 10 W/in², suitable for solutions up to 180°F or 82°C. Featuring a single or three-phase option, these heaters come with replaceable thermal protectors for added safety. Recommended for use with chromic acid and high-temperature solutions, these heaters meet CE, CSA, and UL Listed certifications.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX17G

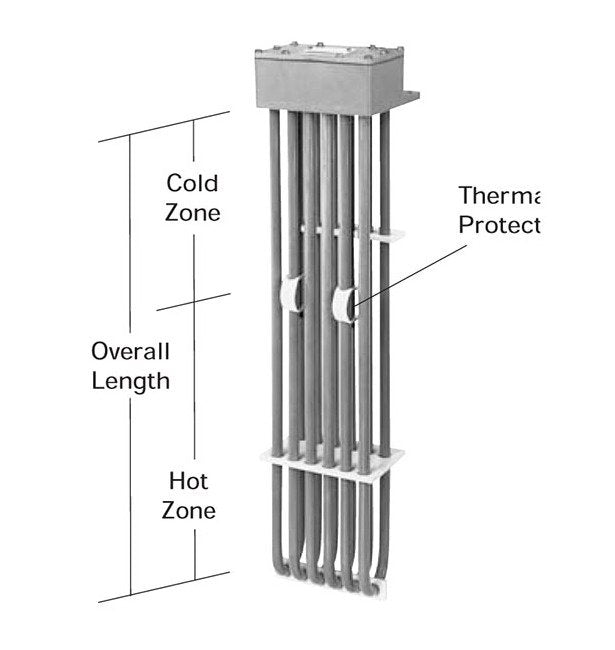

Specifications Hot Zone
9 " | 229 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
19 Pound
Specifications Volts
480 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
19.0 lbs | 8.6 kg
