6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
SKU:HEA-3dfd3c
Powerful 6HX Series 6 Element PTFE Heater - Ideal for industrial applications. Safety and efficiency combined.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$799.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

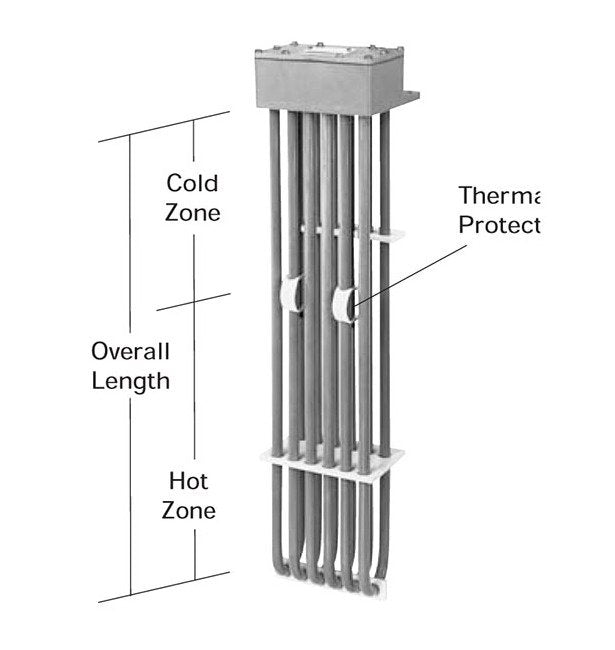

The 6HX Series 6 Element Fluoropolymer (PTFE) Heater is a top-of-the-line immersion heater designed for industrial applications. With a robust construction featuring 6 elements and a high wattage of 12,000 W, this heater ensures efficient heat transfer. It comes equipped with a range of thermal protectors for different solution temperatures, ensuring optimal safety. The guards, sold separately, offer additional protection with options for polypropylene or fluoropolymer (PTFE) for specific chemical solutions. Certified by CE, CSA, and UL, this heater meets stringent industry standards for performance and safety.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX68G
Specifications Hot Zone
55 " | 1397 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
45.0 Pound
Specifications Volts
480 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
45.0 lbs | 20.4 kg
