6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
SKU:HEA-6d9491
High-performance 6-element PTFE Heaters with 6000W, thermal protection options, and corrosion resistance. Certified and compliant for industrial use.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$699.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters - 6 Element Fluoropolymer Immersion Heater
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

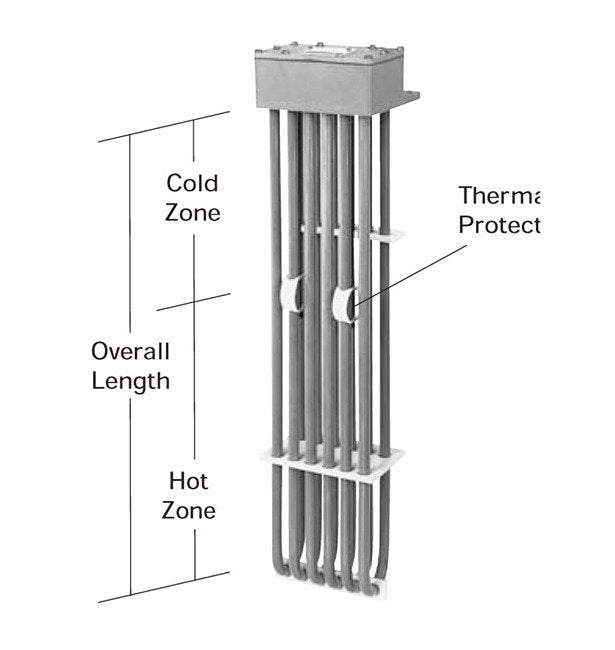

The 6HX Series PTFE Heaters feature six elements with a Wattage of 6000W, suitable for a wide range of industrial applications. With thermal overload protection options and multiple voltages available, these heaters ensure optimal performance and safety. Plus, the Fluoropolymer (PTFE) material construction provides excellent resistance to corrosive solutions, with guard options to meet specific chemical compatibility requirements. Certified by CE, CSA, and UL, these heaters from Process Technology are designed for durability and compliance with industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX35G
Specifications Hot Zone
28 " | 711 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
27.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
27.0 lbs | 12.2 kg
