The 6HX Series Fluoropolymer (PTFE) Heaters are designed for industrial applications requiring precise temperature control. With 6 elements and 3000W power, these heaters offer efficient heating with options for single or three-phase operation. Featuring thermal overload protection and recommended guards for different solutions, these heaters ensure safe and reliable operations. Certified by CE, CSA, and UL, they meet rigorous quality standards. Ideal for processes involving corrosive solutions, the 6HX Series is a trusted choice for demanding industrial environments.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX23G

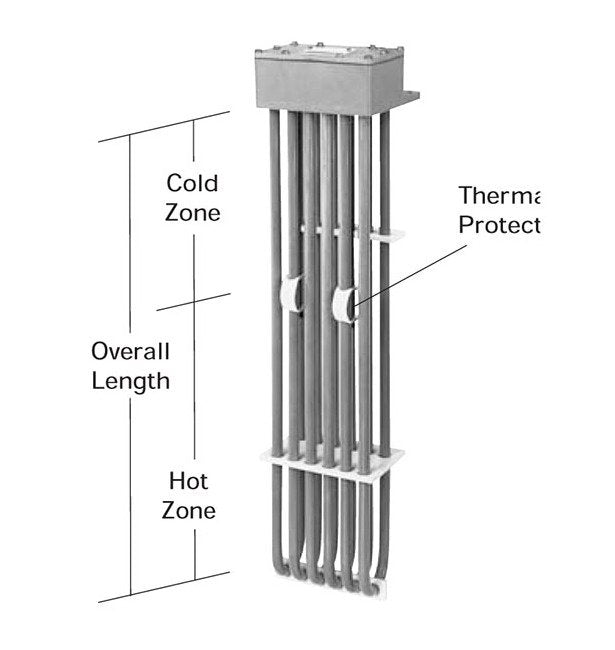

Specifications Hot Zone
15 " | 381 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
22.0 Pound
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
