6HX Series PTFE Heaters (6 Elements)
6HX Series PTFE Heaters (6 Elements)
SKU:HEA-76b382
Efficient 6-element PTFE heaters with thermal protectors and CE/CSA/UL certifications for industrial processes.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters (6 Elements)
$499.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters (6 Elements)
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6HX Series PTFE Heaters feature six elements for efficient heating in industrial processes. Available in single or three-phase options, with wattage up to 3000W and thermal protectors for varying solution temperatures. Constructed with durable Fluoropolymer (PTFE) material, these heaters are recommended for solutions exceeding 180°F. Guards sold separately. With certifications from CE, CSA, and UL Listed, these Process Technology heaters offer reliable performance and safety in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX23G

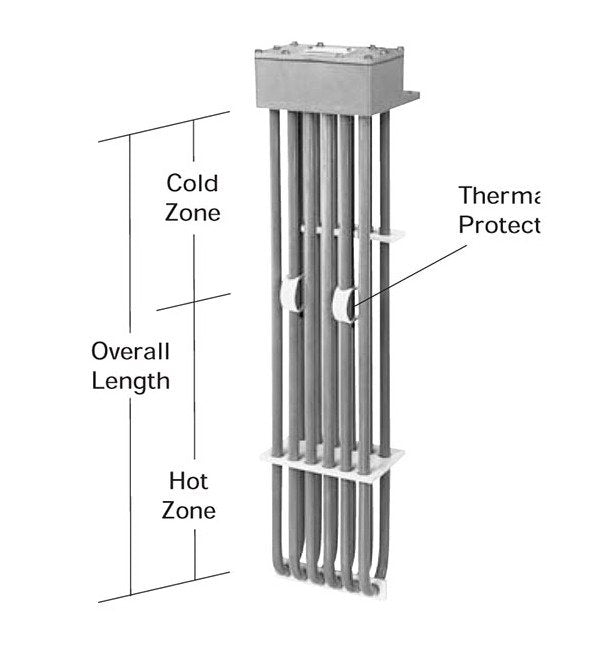

Specifications Hot Zone
15 " | 381 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
22.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
