6HX Series PTFE Heaters with 6 Elements
6HX Series PTFE Heaters with 6 Elements
SKU:HEA-34be1f
Efficient 6-element PTFE heaters with replaceable thermal protectors and certified safety features for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
6HX Series PTFE Heaters with 6 Elements
$699.99
Quantity: 1
Claim Your Seller Account
6HX Series PTFE Heaters with 6 Elements
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

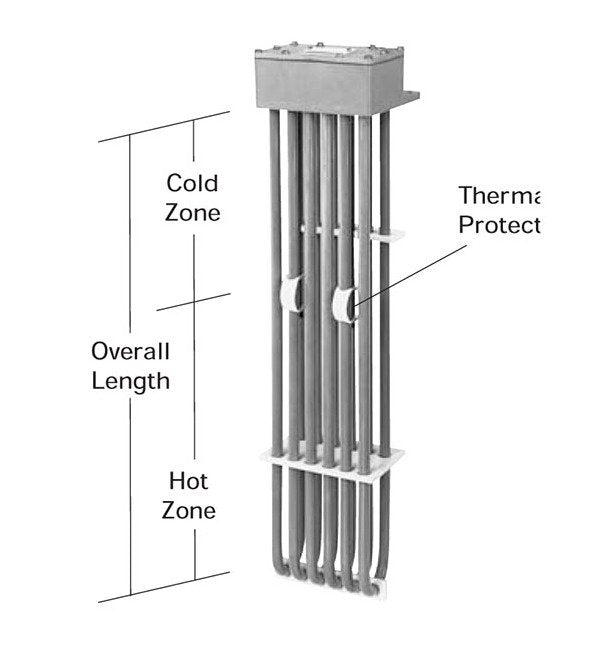

The 6HX Series Fluoropolymer (PTFE) Heaters offer superior heating efficiency with 6 elements designed for robust performance. With options for single or three-phase configuration, these heaters feature a wattage of 6000 W and come with replaceable thermal protectors to ensure safe operation. Recommended guards provide added protection, with Fluoropolymer (PTFE) guards suitable for demanding applications. Certified by CE, CSA, and UL Listed, these heaters are ideal for industrial use requiring precise heating solutions.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
6HX35G
Specifications Hot Zone
28 " | 711 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
6
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
6HX Series
Specifications Shipping Weight
27.0 Pound
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
27.0 lbs | 12.2 kg
