6in IPS Heavy Wall Aboveground Sleeve Coupling with Triple Seal Gasket
6in IPS Heavy Wall Aboveground Sleeve Coupling with Triple Seal Gasket
SKU:BRI-96ec13
Upgrade your conduit systems with our 6in Sleeve Coupling for secure and watertight connections. Triple seal gasket ensures superior protection.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
6in IPS Heavy Wall Aboveground Sleeve Coupling with Triple Seal Gasket
$45.99
Quantity: 1
Claim Your Seller Account
6in IPS Heavy Wall Aboveground Sleeve Coupling with Triple Seal Gasket
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your conduit systems with the 6 Inch Nominal Size Heavy Wall Iron Pipe Size Aboveground Sleeve Coupling. This Champion Fiberglass Inc. product features a triple seal gasket joint that ensures superior protection and water-tight sealing. With a pull-out strength of up to 2,000 lbs, this coupling provides exceptional reliability and durability. Ideal for 4" - 8" applications, this coupling does not require thermoplastic retainer rings, offering a hassle-free installation experience.
Product Specifications
Application
Used for increased protection in 4" - 8"

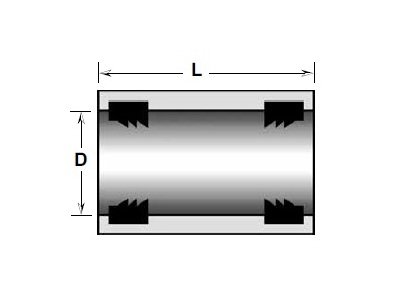

Dimesional Attributes D
6.69 in | 170 mm
Dimesional Attributes L
8 in | 203 mm
Dimesional Attributes Nominal Size
6 in
Features
Most Commonly used.
Gasket Joint Triple Seal
The gasket joint system consists of an integral bell and spigot. The belled end has a triple seal gasket in addition to the interference joint. The triple seal gasket fits into a permanent groove formed during the manufacturing of the conduit. Because of this design, thermoplastic retainer rings, which often fall out during cold weather, are not necessary. The triple seal gasket provides a water tight seal. When properly installed, the triple seal gasket in combination with the interference joint has a pull out strength of 2,000 lbs. Triple seal gasket without interference joint (e.g. after a field cut) has a pull out strength of 500 lbs.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications Conduit Type
Coupling
Specifications Type
Iron Pipe Size (IPS) Aboveground Sleeve Coupling with Gasket Joint
Specifications Wall Thickness
Heavy Wall
Specifications Weight
1.09 kg | 2.40 lb
