6kV 20A Female Modular Connector Insert
6kV 20A Female Modular Connector Insert
SKU:IND-327f13
High-performance 6kV 20A female insert for secure industrial connections.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
6kV 20A Female Modular Connector Insert
$32.99
Quantity: 1
Claim Your Seller Account
6kV 20A Female Modular Connector Insert
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

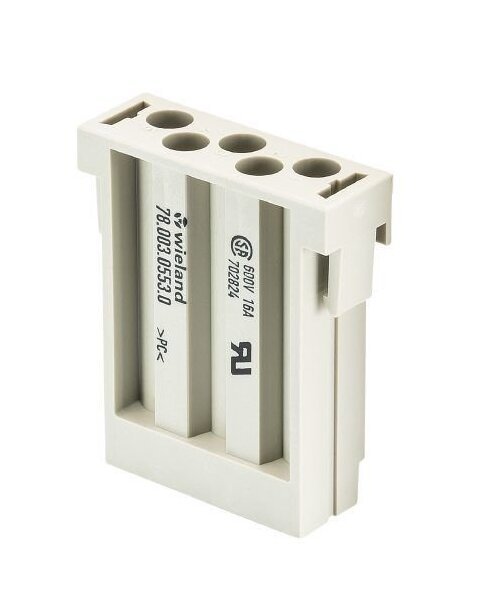

The 6 KiloVolt (kV) rated impulse voltage and 20 Ampere (A) nominal current female insert is a top-of-the-line modular connector insert designed for industrial multipole connectors. It boasts a reliable crimp connection with turned contacts, ensuring secure electrical conductivity. With a V0 inflammability class of insulation material, this gray insert is not only durable but also safe. It meets various standards like UL/CSA ratings, RoHS conformity, and REACH-SVHC compliance, making it ideal for institutions and government procurement.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Crimp
Connection Data Number Of Poles
5
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
5
Connection Data With Wire Protection
No
Contacts Contact Resistance
⤠2 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
8 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
500
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
250 V
Technical Data Din En 61984 Nominal Current
20 A
Technical Data Din En 61984 Nominal Voltage
250 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Flexible Wire Conductor Cross Section
20-12 AWG
Technical Data Ulcsa Maximum Flexible Wire Conductor Cross Secti
4 mm²
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
400 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
16 A
Technical Data Ulcsa Rated Current According Underwriters Labora
20 A
