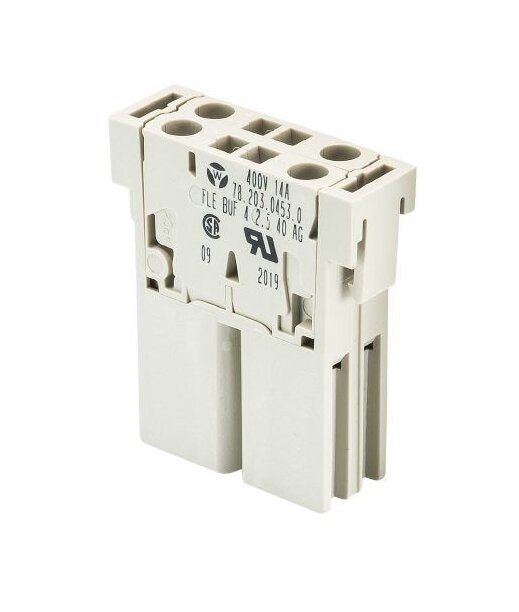

6kV Rated Impulse Voltage Female Insert (400V/14A)
6kV Rated Impulse Voltage Female Insert (400V/14A)
SKU:IND-ec9658
Enhance your connectors with the reliable 6kV Impulse Voltage Female Insert for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
6kV Rated Impulse Voltage Female Insert (400V/14A)
$24.99
Quantity: 1
Claim Your Seller Account
6kV Rated Impulse Voltage Female Insert (400V/14A)
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial multipole connectors with the 6kV Rated Impulse Voltage and 14A Nominal Current Female Insert. This modular connector insert from Wieland offers reliable spring clamp connections, V0 rated insulation, and a durable copper alloy contact material with silver plating. With a temperature range of -40°C to 120°C, this gray insert is designed for longevity and performance. Compliant with RoHS and REACH-SVHC standards, it ensures safe and environmentally friendly operation in diverse industrial settings.
Product Specifications
Classification Eclass 81 Classification
27440205
Classification Etim 30 Classification
EC000438
Classification Etim 40 Classification
EC000438
Classification Etim 50 Classification
EC000438
Classification Etim 60 Classification
EC000438
Classification Etim 70 Classification
EC000438
Connection Data Connection Type
Spring Clamp Connection
Connection Data Maximum Conductor Diameter Rigid Solidstranded
2.5 mm²
Connection Data Minimum Conductor Diameter Rigid Solidstranded
0.5 mm²
Connection Data Number Of Poles
4
Connection Data Protective Contact
No
Connection Data Total Number Of Poles Without Ground Contact
4
Connection Data With Wire Protection
Yes
Contacts Contact Material
Copper Alloy
Contacts Contact Resistance
⤠5 mΩ
Contacts Surface
Silver-Plated
Contacts Wire Strip Length
10 mm
General Brands
Wieland
General Color
Gray
General Inflammability Class Of Insulation Material According Wi
V0
General Mating Cycles
200
General Maximum Operating Temperature Range
120 ºC
General Minimum Operating Temperature Range
-40 ºC
General Model
Female Insert
General Modular Version
Yes
General Pollution Degree
3
Model With Housing
No
Product Compliance Reach Svhc Conformity Status
Compliant
Product Compliance Rohs Conformity Status
Compliant
Technical Data Din En 61984 Maximum Rated Voltage Faceground
400 V
Technical Data Din En 61984 Nominal Current
14 A
Technical Data Din En 61984 Nominal Voltage
400 V
Technical Data Din En 61984 Rated Impulse Voltage
6 kV
Technical Data Ulcsa Maximum Rated Voltage According To Underwri
600 V
Technical Data Ulcsa Minimum Flexible Wire Conductor Cross Secti
0.5 mm²
Technical Data Ulcsa Rated Current According Canadian Standards
14 A
Technical Data Ulcsa Rated Current According Underwriters Labora
14 A
