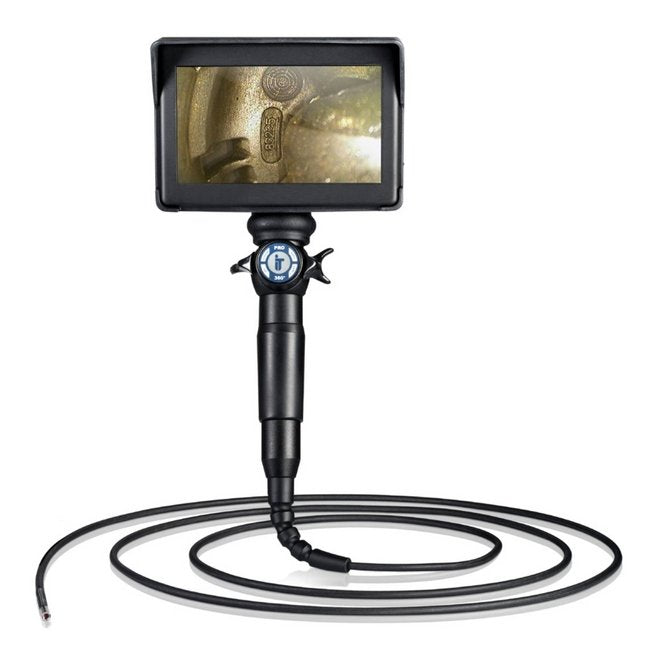

6mm Diameter iRis X Pro Videoscope | Industrial Borescope
6mm Diameter iRis X Pro Videoscope | Industrial Borescope
SKU:IND-ae0792
Experience cutting-edge inspections with the 6mm iRis X Pro Videoscope, featuring 4-way articulation, high-res display, and heat-resistant probe.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
6mm Diameter iRis X Pro Videoscope | Industrial Borescope
$2,999.99
Quantity: 1
Claim Your Seller Account
6mm Diameter iRis X Pro Videoscope | Industrial Borescope
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6mm Diameter iRis X Pro Videoscope by Fiberscope.net is a cutting-edge tool designed for efficient and thorough inspections in various industries. With features like 4-Way Articulation, High-Resolution TFT Display, and Heat-resistant Probe, this videoscope enables quick and precise examinations of turbines, pipes, metal castings, and more. Its advanced technologies, including an ATI image sensor and high-power LEDs, ensure top-notch performance. Explore the convenience of one-touch image capture, comparative optical measurement, and waterproof IP67 protection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The IRIS X PRO Videoscope is a highly-advanced video borescope that combines numerous technologies into one. It is specifically designed for speedy inspections of various equipment, such as turbines (compressor and hot section), pipes and tubes (welds, food processing, pharmaceutical), and metal castings (blockages and cross holes). This videoscope is equipped with a CMOS ATI advanced image sensor, high-power LEDs, and rugged shock protection. The main configuration is a heat-resistant probe with waterproof IP67 tungsten braiding over a polyurethane jacket, with an extra metal coil underneath; an optional side view configuration is also available. The 7-inch touchscreen monitor is permanently attached and has quick image/video capture, text generation, and comparative measurement features. The 4-way articulation is controlled via wires, using two levers on the handpiece, allowing for faster and more precise manipulation. The IRIS X PRO Videoscope is widely used in the automotive industry, aviation factories, and mechanical engineering. It is an excellent solution for complex inspection situations that require quality and performance.
Applications
Automobile IndustrySafety InspectionsIndustrial InspectionsAviation IndustryConstruction InspectionsFactory InspectionsMechanical EngineeringPlumbing and Heating ApplicationVentilation, Air Conditioning, and Refrigeration (HVACR)
Features
One-Touch Image Capture4-Way Tip Articulation with 360º RotationTwo Mechanical Levers for Precise Articulation Control7-inch High-Resolution TFT Touch Screen DisplayComparative Optical MeasurementHeat-resistant up 284 ºF (140 ºC) for 5 Minutes
Technical Specs Articulation
4-Way
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Diameter
6 mm | 0.23 in
Technical Specs Display Size
7 in
Technical Specs Display Type
Thin Film Transistor (TFT)
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Probes
No
Technical Specs Length
1.5 m | 2 m | 3 m | 4 m | 5 m | 6 m | 7.5 m | 4.9 to 24.6 ft
Technical Specs Measurement
Yes
Technical Specs Note
Available for Rent
Technical Specs Probe Braiding
Tungsten
Technical Specs Resolution
1024x600
Technical Specs Waterproof Probe
Ingress Protection (IP67)
