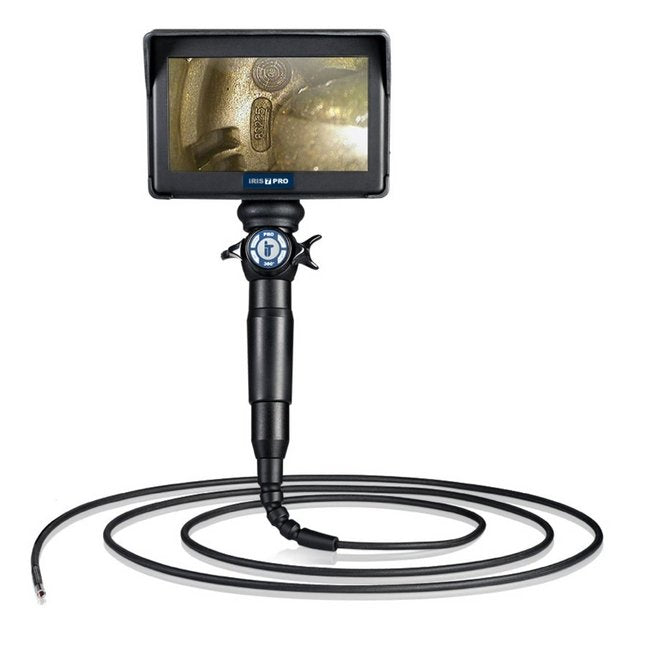

6mm iRis 7 Pro Industrial Videoscope
6mm iRis 7 Pro Industrial Videoscope
SKU:IND-54884b
Advanced 6mm industrial videoscope for precise inspections in automotive, aviation, and mechanical engineering. Waterproof, heat-resistant probes with high-res display.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
6mm iRis 7 Pro Industrial Videoscope
$2,799.99
Quantity: 1
Claim Your Seller Account
6mm iRis 7 Pro Industrial Videoscope
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 6mm iRis 7 Pro Industrial Videoscope is a cutting-edge inspection tool designed for efficiency and precision. With features like 4-way tip articulation, high-resolution TFT display, and heat-resistant probes, this videoscope ensures accurate inspections in various industries such as automotive, aviation, and mechanical engineering. Its durable construction with tungsten braiding and IP67 waterproof rating makes it ideal for challenging environments. Customize with additional lenses and adapters for versatile use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information
The IRIS 7 PRO Videoscope is a highly-advanced video borescope that offers numerous benefits. It is specifically designed for speedy inspections of various equipment, such as turbines (compressor and hot section), pipes and tubes (welds, food processing, pharmaceutical), and metal castings (blockages and cross holes). This videoscope is equipped with a True Industrial Grade CCD sensor and can also be customized with additional lenses, tip adapters, and accessories. The heat-resistant probes come with a waterproof IP67 tungsten braiding over a polyurethane jacket, with an additional metal coil underneath. The 7-inch touchscreen monitor is permanently attached and has quick image/video capture, text generation, and comparative measurement features. The 4-way articulation is controlled via wires, using two levers on the handpiece, allowing for faster and more precise manipulation. The IRIS 7 PRO Videoscope is widely used in the automotive industry, aviation factories, and mechanical engineering. It is an excellent solution for complex inspection situations that require quality and performance.
Applications
Automobile IndustrySafety InspectionsIndustrial InspectionsAviation IndustryConstruction InspectionsFactory InspectionsMechanical EngineeringPlumbing and Heating ApplicationVentilation, Air Conditioning, and Refrigeration (HVACR)
Features
One-Touch Image Capture4-Way Tip Articulation with 360º RotationTwo Mechanical Levers for Precise Articulation Control7-inch High-Resolution TFT Touch Screen DisplayComparative Optical Measurement Heat-resistant up 284º F (140ºC) for 5 Minutes
Technical Specs Articulation
4-Way
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Diameter
6 mm | 0.23 in
Technical Specs Display Size
7 in
Technical Specs Display Type
Thin Film Transistor (TFT)
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Probes
No
Technical Specs Length
1.5 m | 2 m | 3 m | 4 m | 5 m | 6 m | 7.5 m | 4.9 to 24.6 ft
Technical Specs Measurement
Yes
Technical Specs Note
Available for Rent
Technical Specs Probe Braiding
Tungsten
Technical Specs Resolution
1024x600
Technical Specs Waterproof Probe
Ingress Protection (IP67)
