6mm Male Pipe Weld Elbow, SMPWEI Series
6mm Male Pipe Weld Elbow, SMPWEI Series
SKU:SMP-634a6a
High-quality 6mm Male Pipe Weld Elbow for precise tube-to-pipe connections. Patented i-Fitting® design ensures safety, productivity, and cost savings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
6mm Male Pipe Weld Elbow, SMPWEI Series
$29.99
Quantity: 1
Claim Your Seller Account
6mm Male Pipe Weld Elbow, SMPWEI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

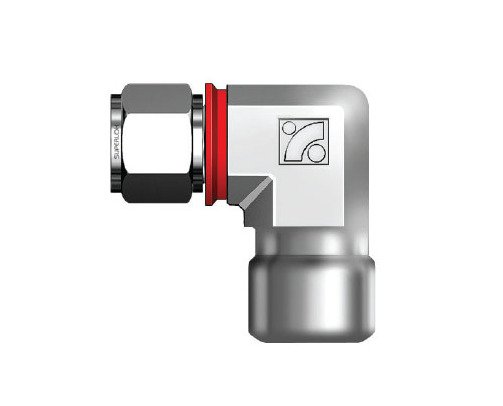

The SMPWEI Series 6mm Male Pipe Weld Elbow is a premium fitting that connects metric tubes to pipes with precision and reliability. Crafted from high-quality materials like Alloy 625, Alloy 825, and Stainless Steel, this male pipe weld elbow ensures durability and longevity in various industrial applications. Its patented i-Fitting® design includes a built-in gap gauge for perfect compression, enhancing installer safety, productivity, and cost-efficiency. Ideal for high-pressure and hazardous chemical environments, this product delivers exceptional performance and ease of use.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

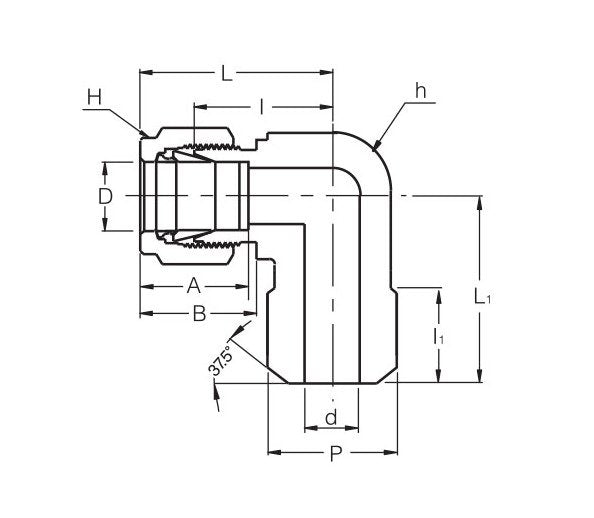

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.2 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension L
26.9 mm
Technical Specs Dimension L2
23.4 mm
Technical Specs Male Pipe Outside Diameter
13.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Nominal Male Pipe Size P
1/4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14.3 mm
