6mm Right Angle Socket Contact for Flash Lamp Series
6mm Right Angle Socket Contact for Flash Lamp Series
SKU:HIG-3985b5
High-current 6mm Right Angle Socket Contact for Flash Lamp Series applications, offers reliable performance with 12 kV DC Voltage and 100 A current rating.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
6mm Right Angle Socket Contact for Flash Lamp Series
$59.99
Quantity: 1
Claim Your Seller Account
6mm Right Angle Socket Contact for Flash Lamp Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

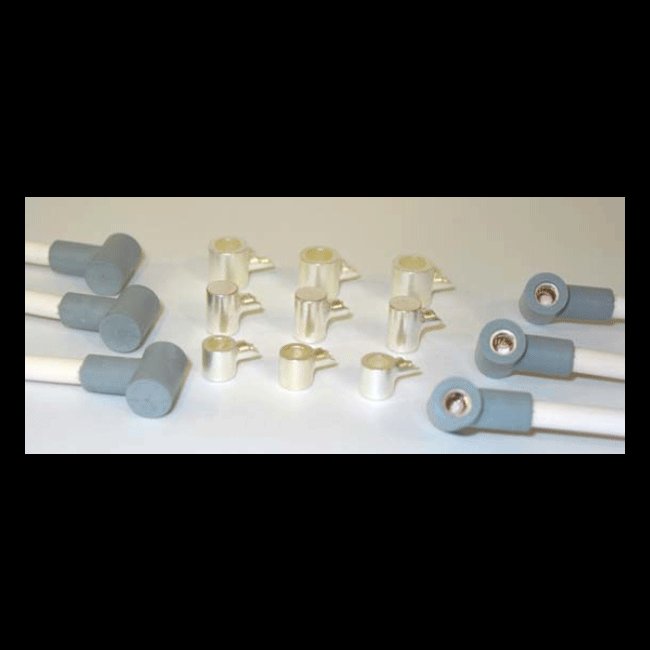

The Right Angle 6mm Size Socket Contact from the Flash Lamp Series by Connectronics is a high current electrical connector designed for applications where space, weight, and temperature are critical. Featuring Multilam band contact spring finger technology, this contact offers higher current ratings with lower temperature rise compared to traditional designs. With a DC Voltage rating of 12 kV and a current rating of 100 A, this connector ensures reliable performance in various conditions. The silicone rubber over moldings and Tellurium Copper Alloy construction with Silver Plating provide durability and a high voltage barrier for added safety. Ideal for Laser Back Lighting, Illumination, and Percussion applications.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
100 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft

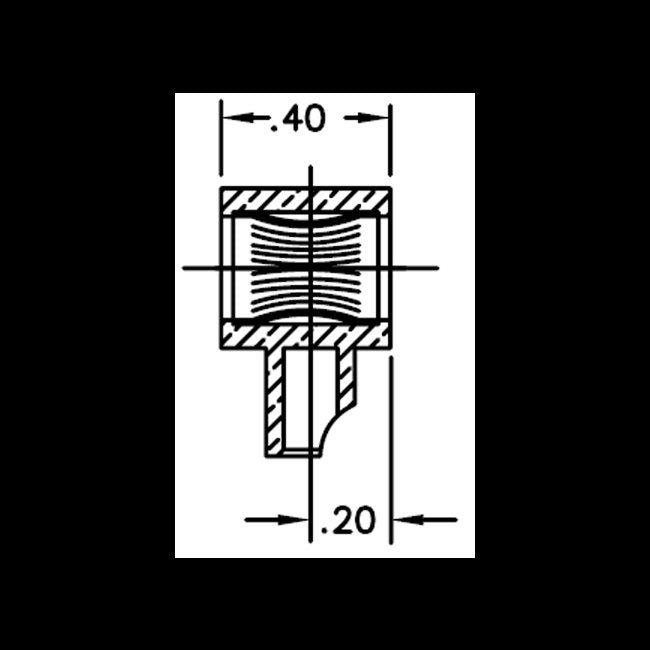

Specifications Size
6 mm | 0.236 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
