6mm Right Hand Moving Side Guide PillowTop Chain
6mm Right Hand Moving Side Guide PillowTop Chain
SKU:CHA-0b9ee9
Enhance your conveyor system with the precise and durable 6mm Right Hand Moving Side Guide PillowTop Chain for food industries.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
6mm Right Hand Moving Side Guide PillowTop Chain
$149.99
Quantity: 1
Claim Your Seller Account
6mm Right Hand Moving Side Guide PillowTop Chain
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

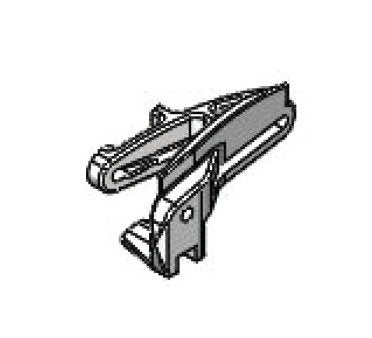

Upgrade your conveyor system with the 6mm Moving Side Guide Direction 1/2 Right Hand PillowTop Chain. Designed with a tight turning radius of 50mm, this chain offers precise transfers ideal for food industries handling delicate products like tortillas and cookies. Made of durable Acetal material, this SpanTech® brand chain is lightweight yet strong, making it a cost-effective solution. Its sanitary open design enhances cleanability, perfect for cooling applications. Experience efficiency and reliability with this versatile chain option.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Direction
Right Hand
Specifications Moving Side Guide Size
6 mm
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action
The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
