6mm Right Hand PillowTop Link Chain
6mm Right Hand PillowTop Link Chain
SKU:CHA-6a598c
6mm Right Hand PillowTop Chain: Lightweight, strong & sanitary. Perfect for food industries & delicate products.
Regular price
$124.99
Regular price
Sale price
$124.99
Unit price
per
Initiate Order
6mm Right Hand PillowTop Link Chain
$124.99
Quantity: 1
Claim Your Seller Account
6mm Right Hand PillowTop Link Chain
$124.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

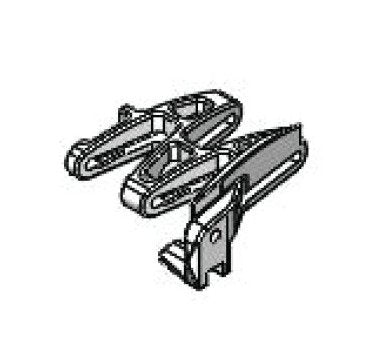

The 6mm Right Hand PillowTop Link Chain in the 50mm Pitch Size category is designed with a curved structure to minimize chordal action, allowing for precise transfers close to the chain. Ideal for food industries, especially for handling delicate products like tortillas and cookies. This SpanTech® chain offers exceptional durability, lightweight strength, and superior cleanability, making it perfect for cooling applications. It boasts a tight turning radius, ensuring seamless operation in compact spaces.
Product Specifications
Additional Information Additional Information
Handles the most delicate of products with ease and precision.
Chain Options Chain Options
Plain (White or Blue)Moving Side Guide (White or Blue)
Specifications Available Width Ranges
3.76 to 46.28 in | 95.6 to 1205.6 mm
Specifications Durable
50 mm PillowTop Chain is very lightweight yet very strong.
Specifications Material Options
Acetal
Specifications Moving Side Guide Size
6 mm
Specifications Pitch Size
1.97 in | 50 mm
Specifications Sanitary
The open design concept improves cleanability and makes it perfect for cooling applications.
Specifications Tight Turning Radius
50 mm PillowTop chain has one of the tighter turning radii that Span Tech offers.
What Is Chordal Action What Is Chordal Action

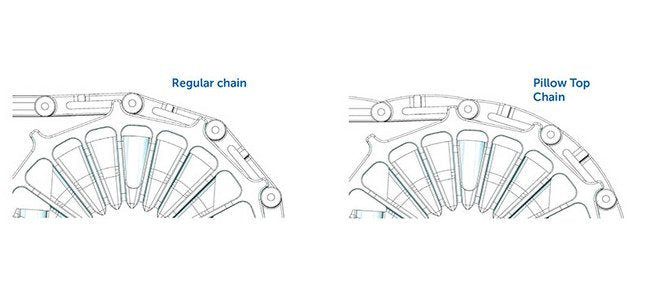

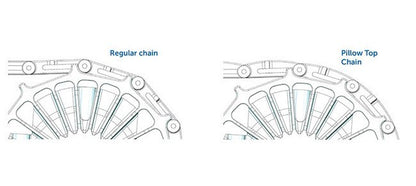

The rising and lowering of an individual chain link as it enters a sprocket is known as chordal action. The reason it happens is simply due to geometry. When a chain is "wrapped" around a sprocket, the pins of the chain form a polygon shape. When you look at this polygon shape traveling around a sprocket, it is bumpy - not smooth. When a conveyor chain enters a drive sprocket, it goes from a flat line to this polygon shape and results in a rise/lowering of the pin. This effect can be lessened only by using a smaller pitch chain, or increasing the sprocket size - it cannot be prevented. That being said, depending on the elevation of the chain (in relation to the sprocket), we can control whether the chain "rises" or "lowers" to match this polygon shape.
