6mm SMBTI Male Branch Tee Fitting w/ 1/4in Thread Size
6mm SMBTI Male Branch Tee Fitting w/ 1/4in Thread Size
SKU:SMB-e6214a
Enhance fluid systems with precision - 6mm SMBTI Male Branch Tee Fitting w/ 1/4in Thread - Safety, Efficiency, Reliability
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
6mm SMBTI Male Branch Tee Fitting w/ 1/4in Thread Size
$24.99
Quantity: 1
Claim Your Seller Account
6mm SMBTI Male Branch Tee Fitting w/ 1/4in Thread Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

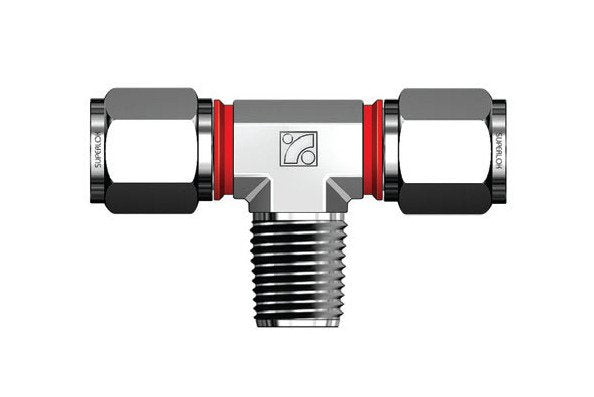

Upgrade your fluid systems with the SMBTI Series 6mm Male Branch Tee Fitting featuring a 1/4in Thread Size. Engineered for precision, this male tee fitting ensures secure connections between metric tubes and female ISO tapered threads. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, the i-Fitting® design guarantees optimal compression, safety, and efficiency. Perfect for high-pressure and hazardous environments, this innovative fitting is a game-changer in the industry, enhancing productivity and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

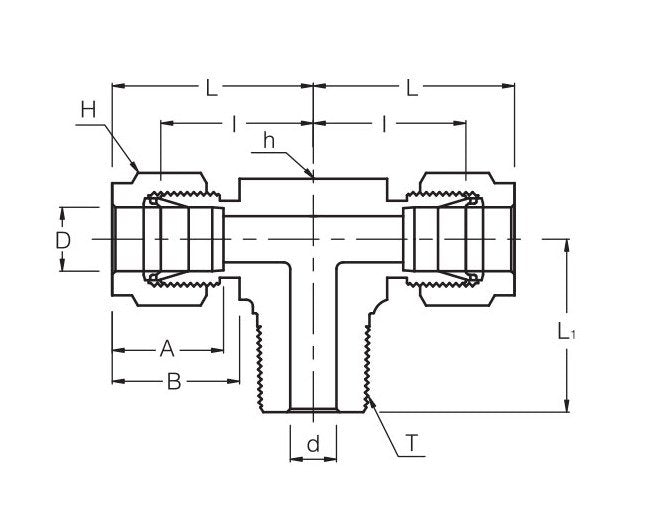

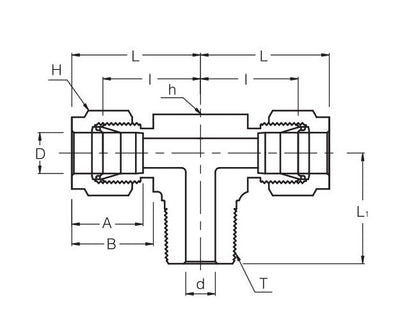

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
19.6 mm
Technical Specs Dimension L
27.0 mm
Technical Specs Dimension L1
23.4 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
