6mm SPMBTI Series Positionable Male Branch Tee Fitting
6mm SPMBTI Series Positionable Male Branch Tee Fitting
SKU:SPM-170234
Effortlessly connect 6mm Metric Tubes to SAE/MS Straight Thread Boss with precision and enhanced safety features.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
6mm SPMBTI Series Positionable Male Branch Tee Fitting
$39.99
Quantity: 1
Claim Your Seller Account
6mm SPMBTI Series Positionable Male Branch Tee Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

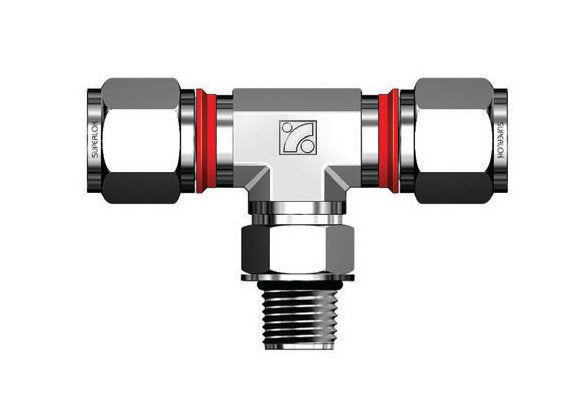

The 6mm SPMBTI Series Positionable Male Branch Tee Fitting is a precision-engineered solution that seamlessly connects 6mm Metric Tubes to SAE/MS Straight Thread Boss. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in diverse industrial environments. With unique i-Fitting® components like the built-in gap gauge and enhanced safety features, this fitting enhances productivity, reduces costs, and guarantees perfect compression. Industry-changing and patented design make it a top choice for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

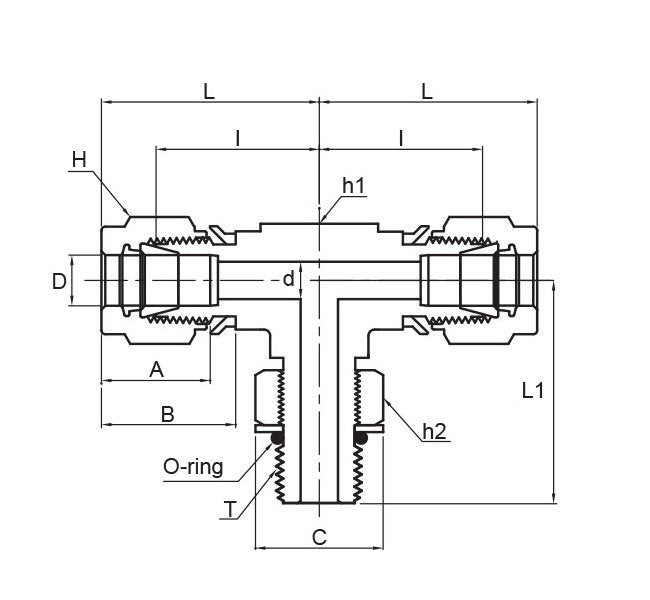

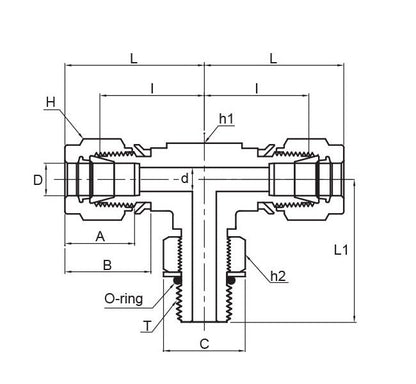

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.2 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension C
16.5 mm
Technical Specs Dimension I
21.1 mm
Technical Specs Dimension L
28.4 mm
Technical Specs Dimension L1
28.5 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
Technical Specs Width Across Flat H1
12.7 mm
Technical Specs Width Across Flat H2
14.3 mm
