The SQC Series 6mm SUPERLOK End Connections Quick Connector Fitting is a premium plug type fitting designed for seamless integration in instrumentation systems. With a Coupled Pressure Rating of up to 3000 psig, this fitting ensures reliable performance even in demanding environments. The 316 Stainless Steel | Brass construction offers durability and corrosion resistance, while the simple push-pull action allows for easy and tool-free line connections and disconnections.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
3000 psig | 206 bar

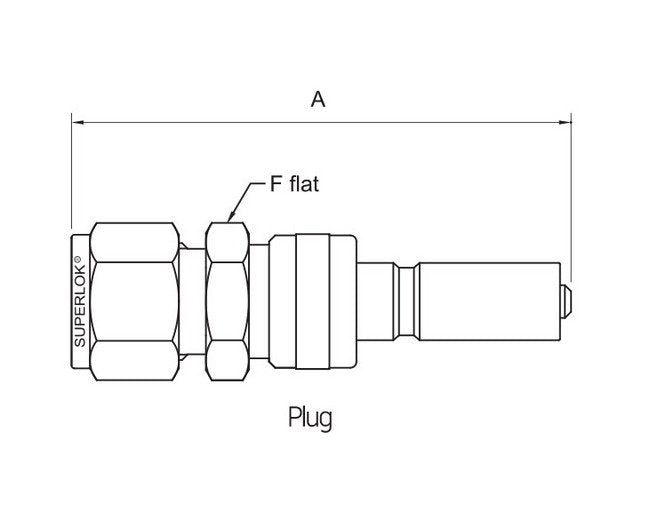

Technical Specs Dimension F
15.9 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Flow Coefficients Cv
0.4
Technical Specs Insertion Depth
1.15 in | 29.2 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
15 L/min | 4 gpm
Technical Specs Note For Spillage
Spillage is the amount of system fluid that escapes when a quick-connect is uncoupled (double shut off only)
Technical Specs Plug Type
Double Shutoff Plug
Technical Specs Spillage
0.3 cm³
Technical Specs Type
Plug
