6mm SUPERLOK Instrumentation Quick Connector Fitting
6mm SUPERLOK Instrumentation Quick Connector Fitting
SKU:SQC-62fe9f
High-performance 6mm SUPERLOK Quick Connector for precise line connections with minimal liquid or gas loss.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
6mm SUPERLOK Instrumentation Quick Connector Fitting
$49.99
Quantity: 1
Claim Your Seller Account
6mm SUPERLOK Instrumentation Quick Connector Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

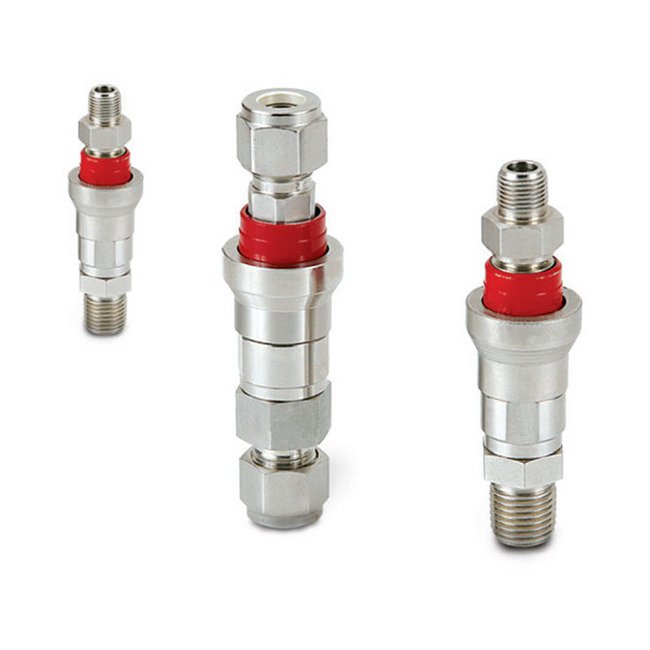

The SQC Series 6mm SUPERLOK Instrumentation Quick Connector Fitting provides a reliable and efficient solution for connecting lines with a simple push-pull action. Constructed with high-quality 316 Stainless Steel or Brass, this fitting offers a coupled pressure rating of 3000 psig at 70°F, ensuring durability and performance. With valved and unvalved options, it minimizes liquid or gas loss during connection and disconnection. Ideal for a wide range of applications, this fitting guarantees precision and ease of use, meeting the stringent requirements of institutional and government buyers.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
3000 psig | 206 bar

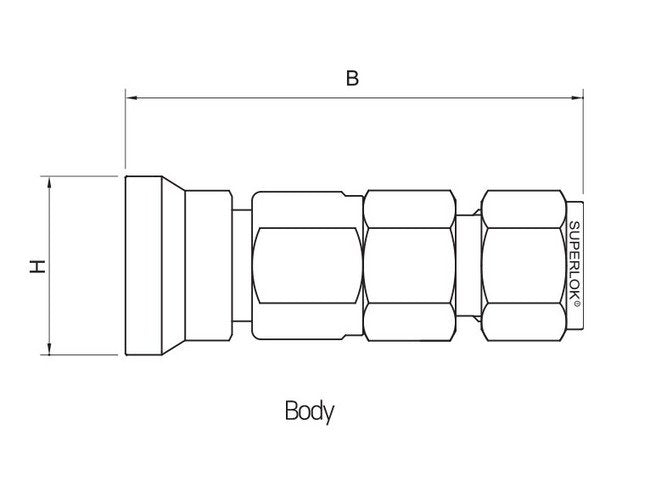

Technical Specs Dimension B
58.4 mm
Technical Specs Dimension H
23.1 mm
Technical Specs End Connections
6 mm SUPERLOK®
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
15 L/min | 4 gpm
Technical Specs Type
Body
