6mm Superlok Low Pressure Relief Valve
6mm Superlok Low Pressure Relief Valve
SKU:REL-e9cc7a
Achieve precise pressure control with the compact SUPERLOK® 6mm Relief Valve. Adjustable cracking pressure and secure lock wire ensure reliable performance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
6mm Superlok Low Pressure Relief Valve
$129.99
Quantity: 1
Claim Your Seller Account
6mm Superlok Low Pressure Relief Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the demands of precise pressure control with the SUPERLOK® SRVH Series 6mm Low Pressure Relief Valve. Featuring a compact design, externally adjustable cracking pressure, and a secure lock wire feature, each valve is factory-tested for reliable performance. With a cracking pressure range of 225~6000 psig, maximum working pressure of 6000 psig, and 4.8mm orifice size, this valve ensures repeatable set pressure within ±5%. Ideal for a range of applications requiring set pressure accuracy and reliability.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

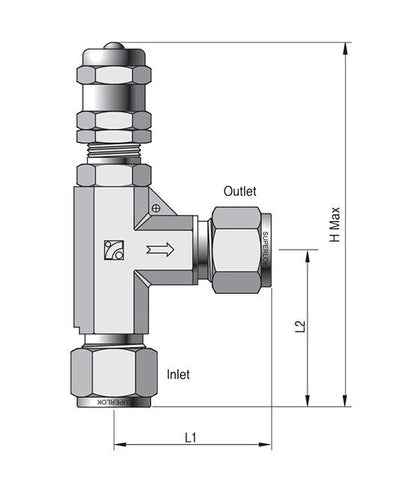

Technical Specs Dimension H
104.6 mm
Technical Specs Dimension L1
38.7 mm
Technical Specs Dimension L2
37.3 mm
Technical Specs Inlet End Connections
6 mm Superlok®
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
6 mm Superlok®
Technical Specs Series
SRVH
